TA - Model SSS-12P-1/SSS-22P & SSS-22-PAL -Portable Liquid Scintillation Counting System
The SSS-12P Manual Liquid Scintillation Counting System accurately quantitatively measures Carbon-14, Tritium and most other radioactive materials. But for measuring low levels of Tritium and C-14, Model # SSS-22P is recommended. Optionally, gamma ray counting is achieved by inserting and optically coupling an Nal(Tl) scintillation well crystal on the PM tube.
Most popular related searches
scintillation counting
calibration standard
sample holder
single channel analyzer
gamma ray
tritium monitoring
level monitoring
phosphorus analysis
gamma radiation
radionuclide
- Measuring Principal: The most sensitive method of detecting and quantitating Beta emitting isotopes is to intimately mix the sample with liquid scintillation fluor and count each individual scintillation event with a photomultplier counter.
- Alpha / Beta Separation.
- Count Verification for Tritium.
- An Energy Analyzer further selects the pulses and delivers the true signal.
- A Detection cell is optically coupled to selected photomultiplier tubes.

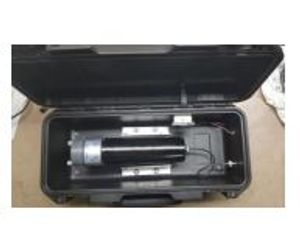

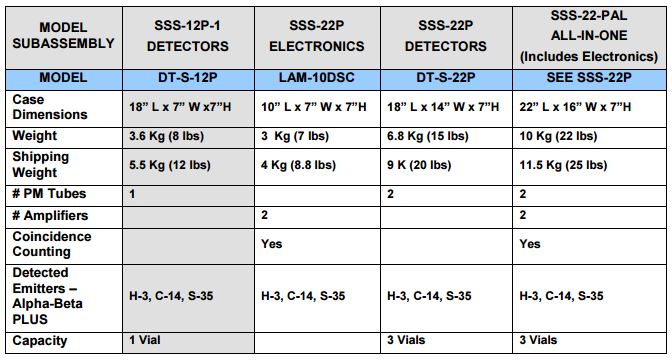

- SSS-12P-1 has a 1 Vial Capacity – 1 PM Tube.

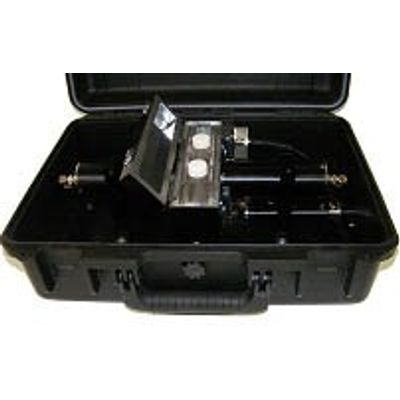

- SSS-22P has a 3 Vial Capacity providing faster thru-put and easy comparison of sample to calibration standard or to background – 2 PM Tubes

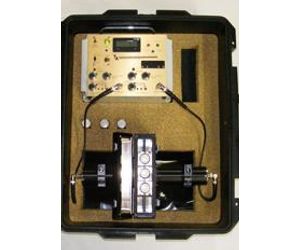

- SSS-22PAL has a 3 Vial Capacity as does the SSS-22P providing faster thru-put and easy comparison of sample to calibration standard or to background. It is an ALL-IN-ONE SSS-22P contained within a suitcase with electronics, detectors, and sample holders for your convenience.
- A User Manual is provided.
- Measures all alpha - beta emitters and low energy gamma emitters – including
- Tritium, carbon-14, & sulphur-35
- Alpha / beta separation
- Dual pm tube design for coincidence verification
- Sss-12p-1 – single sample holder
- Sss-22p – three sample holder
- Settable window can be set for any isotope
- Sample type: water, food, soil, fabric, etc.
- All in one unit– sss-22-pal
- R-232 pc interface
- Optional - hard copy printer
- A Liquid Scintillation Counting System is useful for measurement of radionuclides in many materials including food, soil, water, blood, etc.
- The SSS-12P-1 & SSS-22P Manual Liquid Scintillation Counting Systems accurately quantitatively measures Carbon-14 and most other radioactive materials.
- The SSS-22P also measures Tritium & Exceptional for measuring low levels of Tritium, C-14, & S-35.
Rejection Features:
- Energy analyzer window rejects pulses with energies outside the window setting
- Optional Lead Shielding around detector.
Counting Assembly Features:
- Excellent repeatability
- Fully light tight system
- Fail safe interlock to protect PM tubes
- High transmission optical coupling to PM tube
PM Tube & PRE-AMP Noise Elimination Features:
- Coincidence Verification with High quality Dual PM tubes and preamps.
- Fully adjustable energy analyzer window rejects low energy pulses.
- SSS-12P-1: 1 Vial Capacity – 1 PM Tube.
- SSS-22P: 3 Vial capacity for faster thru-put and easy comparison of sample to calibration standard or to the background – 2 PM Tubes
- SSS-22P: 3 Vial capacity provides less wait time for dark adaption of phosphor.
Data Analysis & Presentation:
- Scintillation counts detected by PM tubes are processed by a fully adjustable single channel analyzer which is
- centered on the energy peak of the isotope being measured. This deletes both higher energy pulses from background
- radiation and lower energy counts from the PM tube or circuit noise. The pulses feed to a digital scaler and optional
- digital printer.
- This process allows long count times for measurement of very minute samples.
- USB interface to computers or data stations.

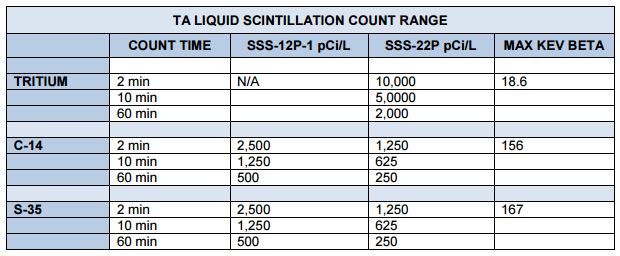

- H-3 Gross Efficiency: >20% Gross, Coincidence efficiency >10% Verified.
- Count Times: 1 sec. thru 99 sec. (1 sec. increments), and 1 min. thru 99 min. (in 1 min. increments).
- Voltage: 0-1500 Volts - fully user settable.
- Readout: Digital - 6 digit LCD, (LED optional).
- Outputs: Standard: Serial pulse output and R-232.
- Power: Rechargeable Lithium batteries and AC adapter
- Sample Size: Accepts standard Liquid Scintillation vials 20-25 ml.
- SSS-22 PAL Case: Weather-tight NEMA rated tough, durable, lightweight.
- A “tongue-in-groove” continuous O”-ring system makes the case water, moisture, and dust tight. Plus a low profile pressure release valve.
- Optional:SSS-22P: Accepts 6-7 ml vials with Optional adapter.
- Scintillation Fluors: Accepts most scintillation fluors. Perkin-Elmer Ultima Gold-LLT is recommended for H-3 counting
- Set of 3 calibrated liquid standards, H-3, C-14 and S-35. User must mix TA solutions with liquid scintillant.
- Optional Interfaces and Outputs: Clear instructions with all interfaces.
- Data logging software, Model # ORO-22P
- Data acquisition interface and cable with driver, Model # DAQ-3
- Increase from 3 to 6 sample capacity
