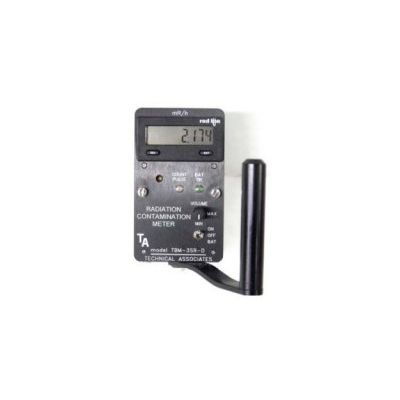

TA - Model TBM-3SR-D -Portable Digital Radiation Contamination Monitor

SHARE

Small Digital Ratemeter. Built in 2” diameter pancake tube and speaker. Reads out in mR/hr (or counts per minute). Thin window recessed and protected by sturdy grill. Sliding methacrylate Beta shield for additional protection for thin GM tube window. Alpha, Beta and Gamma radiation. Anti-saturation circuit will not fall below full scale in high fields. Tested to 100R/h.

Most popular related searches
radiation contamination monitoring
survey meter
radioactive contamination
gamma radiation
fire fighting
first response
contamination monitoring
contaminant monitoring
radiation contamination
digital radiation monitoring
  • Alpha, Beta, Gamma
  • Digital display
  • Light weight
  • Rugged
  • One hand operation
  • Built-in speaker
  • Large 2” Pancake Detector
  • Beta shield window
  • Anti-saturation circuit
  • Its small size, light weight, one hand operation, and large detector area make this a very useful monitor for surveying bench tops or checking hands and clothes for almost any radioactive contamination.
  • Excellent for Fire Department, Ambulance, Police, First Responders and U.S Custom Personnel use for surveying people, cars, luggage, surface of room, etc…
  • Digital Display: Large 6 digit LCD
  • Ranges: 0.01 t100.00 mR/hr.
  • Display: 8 Digit LCD Digital Dose Rate and Integrated Modes Eliminates the need for a Range Switch, and AutRange
  • Switch Positions: On/Off Toggle
  • Battery Test Switch: Toggle
  • Detector: T-1190 “pancake GM tube”
  • Diameter: 2 inches (5cm).
  • Window Diameter: 1-3/4 inches (4.5cm)
  • Window Thickness: 1.5 mg/cm2
  • Quench Gas: Halogen for long life.
  • Background: Typical
  • Efficiency: All Betas and Alphas that have the energy tpenetrate the thin window. Gamma sensitivity nominal is 3,500 cpm/mR/h (based on Cs137).
  • Dimensions:
    • 3” Wide x 5-3/8” Long x 3-1/2” High.
    • Excluding knobs and handle. (7.6 cm x 13.6 cm x 8.9 cm)
  • Beta Shield: Methacrylate 0.125”, 3.1mm.
  • Calibration: Digital calibration of both dose and dose rate from front panel or optionally by computer with serial option.
  • Battery: (6) AA cells – Easy change, snap-in battery holder
  • Battery Life: Approximately 100 hours in normal use
  • Weight: 1 lb 12oz. (794 grams)

Optional

  • Detachable Handle TBM-3SR(DL)
  • Lighted LCD Display.
  • LED and audialarm
  • 2-way Serial port
  • Fully stable AudiAlarm

Fire Fighters: TBM-3SR-D is available with count options:

  • mR/hour Scale OR
  • single Counts Per Second Scale
