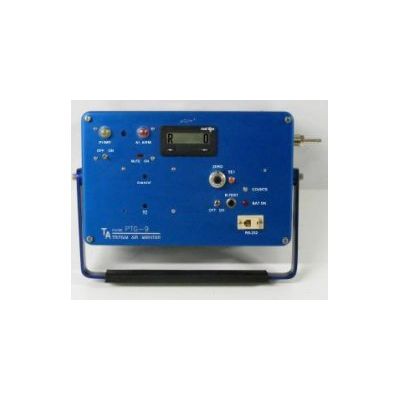

TA - Model VAP-X-Radon -Vapor Extraction Tool and Portable Radon Monitor
Technical Associates VAP-X-Radon Monitor is a sensitive, rugged, portable instrument for detection and measurement of Radon vapor in the soil. Its subtractive balanced chamber electrometer circuit decreases background effects to negligible levels and its deionized and filtered intake reduces to negligible levels spurious effects from dust and existing ionization in soil air. It is battery or AC operated. Inlet and outlet hoses are provided. The PTG-9RN will measure airborne Radon in any form: water vapor, hydrogen gas or as volatile chemicals in concentrations as low as 1 x 10-5 uCi/cc of air. (370 KBq/m3 ) All instruments are calibrated at the factory. Calibration check may be performed in the field with a microCurie level Beta or Gamma source. Background chamber may be disconnected to check linearity of response on a gamma calibration range. User friendly calibration controls are provided.
- User Settable Units - PicoCi/ml or Bq/m3 etc.
- Wide range - digital accuracy
- Programmable digital readout
- Sensitive for occupational exposure
- Dynamic background compensation
- Battery operation or ac operation
- Built-in high level alarm
- Built-in low flow alarm
- Built-IN RS-232 Computer Interface
- Pin-point leak source / location
- Map underground plume
- Locate edge of plume
- Locate problem areas
Advantages:
- Allows user to chase down source
- Optional Sr-90 detection or detection of other nuclides
Situation:

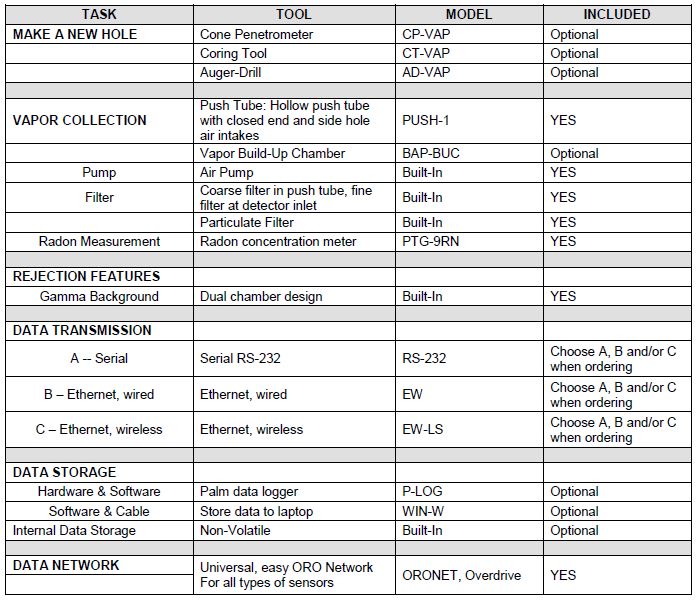

Vapor extraction from soil at a series of points facilitates tracking and mapping a radiation leak or a spreading plume. Existing holes or wells may be available but additional data is required from points at different depths. Model VAP-X-Radon is designed specially to help you accomplish this task. Details in the System Description Chart.
- Ranges: Compact, easy to read digital LCD readout. 1 x 10-6 to 1.0 uc/ml (37 KBq/ml to 3.7 x 1010 Bq/ml.)
- Background: Essentially eliminated by subtractive balanced chambers.
- Smoke, Dust and Ion Elimination: Filter and deionizer reduce effects to negligible level.
- Circuit: Electrometer circuit amplifies net difference between 0.7 liter Radon internal chamber and a sealed background chamber of similar configuration.
- Alarms: Low Air Flow, Alarm High Level Alarm: Red Lamp and Audio Alarm.
- Controls: Power, Pump On/Off, Battery Check, Set (calibration aid), Zero Adjust, Meter Programming (Two buttons).
- Calibration: Can calibrate internally with Radon gas, or on a calibration course, or (at a single point) with optional beta or gamma source. .
- Computer Port: RS-232 serial port is built in (fully addressable).
- Portability: PTG-9RN Lightweight with carrying handle.
- Case: Deep drawn aluminum case, with handle and gasket lid, easy clean anodized finish.
Weight and Dimensions:
- Instrument Case (Including handle): 9``W x 13``L x 9`` Tall.
- Front Panel: 13`` Long x 9`` Wide.
- Battery: 9V rechargeable sealed.
- Battery Life: 20 hours between charges. Battery charger is built-in.
- Weight: 12 lbs.
- Shipping Weight: 15 lbs (Including batteries and charger)
