KWS - Tail Lift Scale - Loading Area Scale

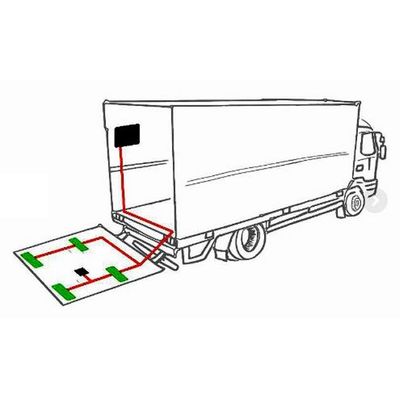

Platform scale for Loading board wall LBWW and loading area LFW. If pallets, lattice boxes, containers or general cargo are to be weighed directly on the truck, a loading board or loading area scale is the right solution. The force transducers are integrated in the loading board wall scales or in the loading area. A loading of up to max. 2 tons.
Your advantages:
Ideal for weighing rubbish bins (eg: sterile welded containers from hospitals) Weighing directly on the tailboard wall or the loading area. If the weight of the contents of waste bins is to be determined, a loading platform scale or loading platform scale is the right solution. The inclination sensor corrects the weight value if it is tilted without the scale switching off.
Technical specifications:
Components:
- terminal
- Tilt sensor (optional)
- printer
- Hermetically sealed load cells
- Mounting kit
Details:
- Calibratable class III & IV, suitable for all commercial goods
- Weighing range up to 2 t, calibration error 1kg.
- Load cells IP68
