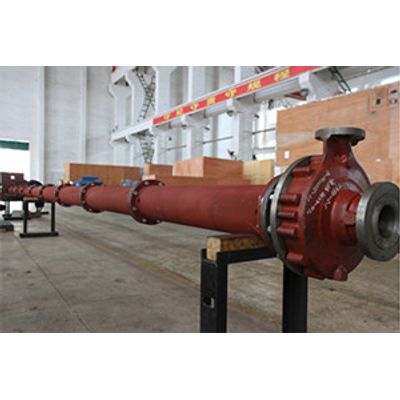

Tane - Model VS4 - Vertical Submerged Pump
From Vertical Pump
The shaft structure is safe and reliable, the rotor parts can be adjusted axially, the rotor parts are supported by multiple points, the operation is reliable, the sliding bearings are externally flushed, and the pump above 80mm has a double volute to balance the radial force. Executive standard API610 standard.
- Flow rate: Q ~500 m3/h (~2202 gpm)
- Head: H ~100m (~328 feet)
- Temperature: T -20 ° C ~ 120 ° C
- Design pressure: ~2.5Mpa
- Power Plant / Chemical Plant / Wastewater Plant / Steel Plant / Paper Mill
