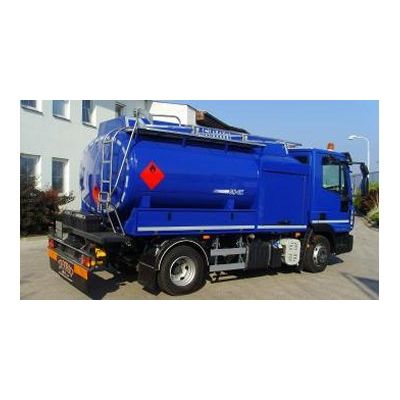

KOBIT - Model CN 6K -Tank Body For Transporting Diesel
Tank body welding from aluminium alloy H 5182, special concave bottoms Technological plac efor mounted gauge, fuel pump and hydraulic reel up drum with hose and gun installed under cabin , roll – up locking doors. Equipment for discharging and loading: 1 x small discharging, hose with hydraulic winded on drum – length hose 25 (60) m, gun DN 32 or 40 mm. 1 x big compulsory discharging through pump – max. flow 200 lt./min. (extra charge to 500 lt./min.). Mechanical gauge with mechanical printer Weeder Root.
Most popular related searches
Filling/discharging unit functions:
- bottom and top loading
- Compulsory discharge through or without gauge – big discharging
- re-pumping from one tank to the other one without using the tank
- re – pumping to own the tank body
- small discharging through hose and gun winded on drum
- gravitation discharging without gauge
- 2 x Fire extinguisher box including 6kg extinguisher
- Hydraulic circuit including pump of max. flow 35 lt./min. with pressure 160 bar for the following operations
- hydraulicaly reservoir
- Flanges and others parts are on technologically case instal after cabin
- Latheral doors with rool system and locks 2 x case for hoses with two hoses DN 3“ – length 3m
- 1 x working light in rear technology part
- 1x grounding cable – 15 m
Mechanical gauge with electronic operation head including compensation temperature, electronic printer with possible transmition data facility for monitoring:
- record of fuel delivery via filling unit with impulse or data output
- option of temperature compensation of delivered volume
- remote data collection including delivery authorization or blocking
- identification of the person or machine filled
- visualisation of the delivery spot over a map
- alarm in case of unauthorized delivery
