Flowtech - Tank Level Indicator

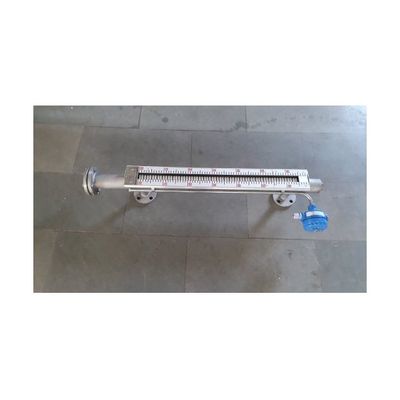

“Flowtech” make Magnetic Level Gauge provides clear, high clarity indication of liquid level. Magnetic Level Gauges are principally designed as an alternative to glass level gauges. Flowtech Measuring Instruments Pvt. Ltd. offers Magnetic Level Gauges in top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic Level Gauge is consists of three major components: Float Chamber, Float and Indicator System. Magnetic Level Gauge operates on the principle of magnetic field coupling to provide Fluid Level Information. Float chamber is typically constructed with non magnetic pipe having process Connections that matches to the vessel connections. Float size and weight is determined by the process fluid, pressure, temperature and the specific gravity of the process fluid. Float contains magnets to provide 360?? magnetic flux field.
“Flowtech” make Top Mounted Level Indicator Substitute to the dip sticks method (for Horizontal & Vertical Tanks.) Corrosive acids like Sulphuric, Nitric, Chlorosulphuric, Acetic Acids, Solvents like Benzene, Acetone, Toluene, OR any Organic Liquids like Butadiene, Vinyl Chloride. NO maintenance and NO motive power require. Simple Non Magnetic can offer where bi-colour PVC capsules mounted on the float moves in glass tube externally.
Design Feature:
- Indicator system is consists of bi-colour rollers equipped with magnets mounted on rail inside the housing. As the level starts rising or falling magnetic float also travels with liquid level in non magnetic chamber. The magnetic interaction between magnets in float and bi-colour rollers causes each roller to rotate 180??. We are providing high & low Level Switch adjustable.
Capsule Design:
- Indicator system consists of bi-colour Capsule which moves in glass tube inside the housing. As the level stars rising or falling magnetic float also travels with liquid level in non magnetic chamber. The magnetic interaction between magnets in float and capsule causes capsule to travel along with magnetic float. We are providing high & low Level Switch adjustable and Level Transmitter with 4 – 20 m Amps output.
Roller Design:
- Indicator system is consists of bi-colour Rollers equipped with magnets mounted on rail inside the housing. As the level starts rising or falling magnetic float also travels with liquid level in non magnetic chamber. The magnetic interaction between magnets in float and bi-colour rollers causes each roller to rotate 180o. We are providing high & low Level Switch adjustable and Level Transmitter with 4 – 20 m Amps output.
Flapper Design:
- Indicator system is consists of bi-colour Flappers equipped with magnets mounted on rail inside the housing. As the level starts rising or falling magnetic float also travels with liquid level in non magnetic chamber. The magnetic interaction between magnets in float and bi-colour Flappers causes each roller to rotate 180o. We are providing high & low Level Switch adjustable and Level Transmitter with 4 – 20 m Amps output.
- Minimum Order Quantity: 1 Piece
- Usage/Application: Liquid
- Measuring Range: Max. 6000 mm
- Brand: Flowtech
- Usage: Industrial
- Material: Stainless Steel
- Process Temperature: -10 Deg C~90 Deg C
- Accuracy: 0.2%
- Item Code: SMLI-019
- Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
- Port of Dispatch: Piece
- Production Capacity: 250 Pieces per month
- Delivery Time: 2 week
- Packaging Details: Wooden Cage
