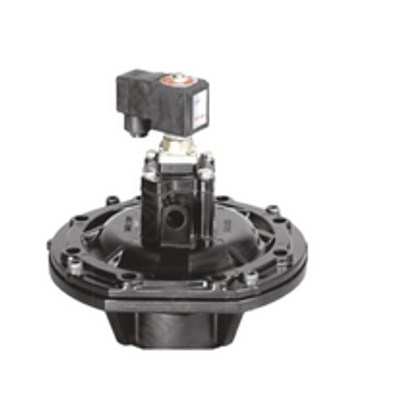

Maniks - Model TMEP Series -Tank Mounted Valves
Maniks is a leading diaphragm valve supplier and diaphragm valve manufacturer in India, known for precision-engineered valves that deliver reliable performance in critical tank and filtration systems. Our tank mounted diaphragm valves are designed for dust collectors, process tanks, and pneumatic systems where durability, leak-proof operation, and fast response are essential. We provide industry-proven diaphragm valves that combine innovation, efficiency, and cost-effectiveness, trusted by global leaders in cement, chemical, and manufacturing industries.
- Construction of Coil: Moulded
- Coil Insulation: Class H
- DIN socket connector: Elcom make 209S PG9
- DIN socket protection: IP65
- Working Temp: -20 to 85°C Normal 55°C
- Supply Voltage: 230 VAC 50/60Hz
- 110VAC 50/60Hz
- 24VDC
- Power Consumption: 19VA / 20 W
Manik’s diaphragm valves are trusted across a wide range of industrial sectors:
- Dust Collector Systems: Efficient cleaning of bag and cartridge filters
- Tank Discharge Systems: Leak-proof discharge control
- Pharmaceutical & Food Processing: Hygienic, contamination-free operation
- Chemical & Gas Handling: Reliable flow control under extreme conditions
- Water Treatment Plants: Long-lasting, corrosion-resistant performance
Our pulse diaphragm solenoid valve technology ensures reliable cleaning cycles and minimal air loss, improving efficiency and lifespan of filtration systems.
The Maniks TMEP series is designed for maximum performance and minimal maintenance.
Key features include:
- Tank-mounted dual diaphragm valve for efficient reverse pulse jet cleaning
- Easy installation on tank manifolds
- Upright mounting is recommended for optimal performance
- Orifice size: 75mm (3″) | Flow factor: 173 m³/hr
- Working fluid: Filtered, oil-free air
- Max pressure: 6.5 Bar
- Gasket: Nitrile, for superior sealing
- Construction: Durable aluminum body with precision-engineered diaphragms
