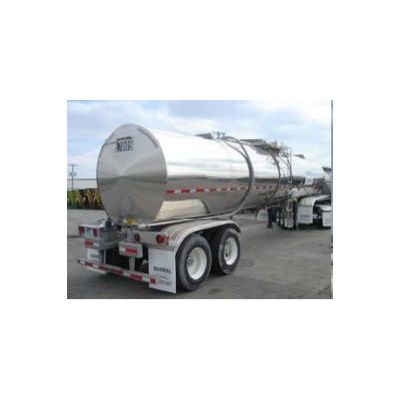

Tank Trailer

Capacity: 6500 to 7000 U.S. gallons (nominal) Suspension: Leaf Spring Lighting: DOT Lighting and reflective tape Outlet Valve: 3” SS QRB Hydrolet valve with 90 degree threaded outlet Construction: Straight Round and Double Conical- Stainless Steel Suspension: Leaf Spring Insulation: Insulated and Non-Insulated tanks Manhole: 20” diameter full opening 6 lug with gasket in cover Vents: 4” girard threaded pressure relief vent, 25 PSI MAWP, rated at a test pressure of 45PSI, complete with a Teflon encapsulated o-ring. Cleanouts: (2) 3” Threaded nozzles in tank shell on top centerline, locate max. 6” from head seams with solid caps
