High Volume Sampler + Real Time PM - Model ECHO EMERGENCY HV -TCR Tecora

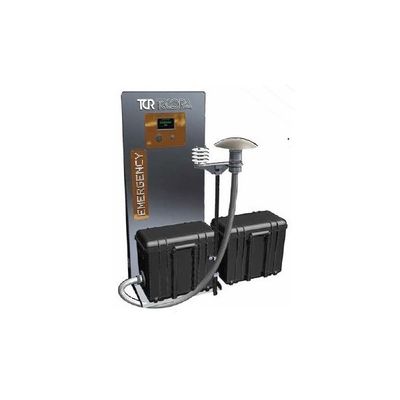

ECHO EMERGENCYHV is the new TCR Tecora® high volume sampler for particulate and micropollutants sampling and monitoring in extreme conditions. TCR Tecora® research division highlighted the need to design a sampling system that can offer a viable solution in emergency or remote situations such as fires, high mountain, isolated areas, contaminated environments to allow PTS/PM10/PM2,5/PM1 sampling on a filter with a backup sorbent trap (PUF) for gaseous organic micropollutants (PCDD/F, PCBs and PAH’s) with the possibility to monitor PM 10 - PM 2.5 - PM1 real time trend concentrations and 24 sizes classes particle distribuition.
ECHO EMERGENCYHV is also available in Dual configuration for sampling on two independent lines, also as conditional sampling, based for example on wind speed and / or wind direction.
- High volume sampler with battery and Vac supply in a single device;
- SINGLE LINE or independent DUAL LINE versions;
- Working parameters control by Docking Station;
- Battery charge’s automatic control and continuous monitoring;
- PM10-PM2,5-PM1up to 2000 μg/m3;
- OPC (0.35 a 40 μm) - 24 size classes - max count 10000 p/s;
- Real time data;
- Integrated GPS;
- Sample conditioning depending on wind direction and velocity;
- RS-485 remote programming;
- Remote control of the device;
- Fast charging of the battery and a safety parameters control by Docking Station;
- Flow rate up to1000 l/min.
HV Sampling Head:
- PTS
- PM10
- PM2,5
- PM1
- PCDD/F & PCBs
OPC:
- PM10
- PM2,5
- PM1
- 24 channel’s OPC (with humidity and temperature sensors)
One of the biggest limitation of portable samplers is the management of battery charge and its maintenance for ready use.
ECHO EMERGENCYHV can be used at 230 Vac in case of power supply near the sampling point or otherwise battery-powered.
TCR Tecora® designed a docking station dedicated to control the instrument, its features and battery charging.
Docking Station according to a user-defined programming by means of the operator panel allows to control ECHO EMERGENCYHV in a cyclical and continuous mode, providing a daily and/or continuous report to the operator.
- Range: 100 -1000 l / min
- Power Supply: 230 Vac and battery
- Battery Duration (Single Line): 24 hours
- Weight and size ( w x d x h ) mm: 15 KG 500 x 250 x 400
- Codes::
- ECHO EMERGENCYHV: AA99-020-0002SP
- ECHO EMERGENCYHV DUAL: AA99-020-0003SP
- PM real time option: AA99-100-0000SP
- Docking station (4 units): AA99-200-0000SP
- Wind direction / Speed Interface: AA99-009-9920SP(+9921SP)
- Battery Pack (DUAL): AA99-020-9980SP (+9981SP)
