TechSpan -Â Precast Arches

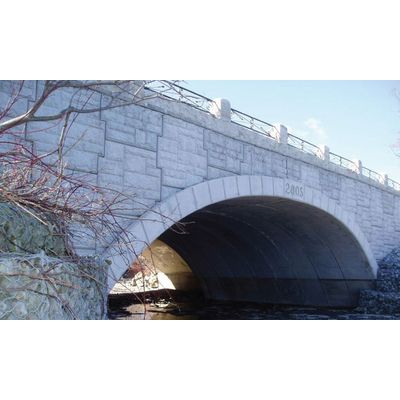

TechSpan is a three-hinged precast concrete arch system, consisting of half arch units that meet at the crown, supported by precast or cast-in-place footings sized for site specific conditions. MSE walls are easily customized and built at the ends of the arch tunnel, forming a standalone bridge, concrete tunnel, or hydraulic structure. The arch units are typically eight to ten inches thick, and are custom designed for the application to minimize materials.
TechSpan construction starts with the installation of cast-in-place or precast footings on both sides. The arch units are set and grouted along the footing keyway in a staggered pattern. After the third unit is set, the arches are self-supported during the remainder construction. Geotextile or geomembrane is applied to the joints as designed. The crown beam is cast along the top of the arch, locking both sides together. MSE headwalls or wing walls are then installed as designed.
- Finite element design provides for the development of the optimal shape based on loading conditions.
- Precast segmental arch units simplify shipping, delivery and installation.
- Self-supporting unit design and installation procedure minimizes heavy equipment usage and bracing requirements.
- Precast units are manufactured under strict quality control environments and tolerances to insure ease of installation.
- Capable of supporting large surcharges in excess of 100 feet.
