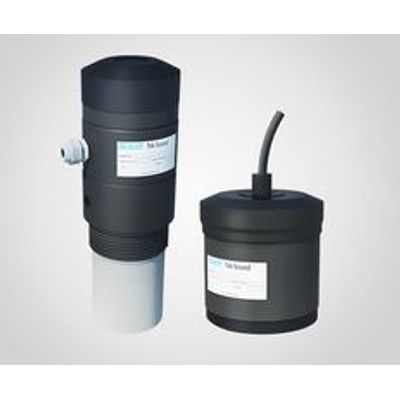

Tek-SoundModel 4200A Series -Explosion Proof Ultrasonic Level Transmitter

SHARE

Tek-Sound 4200A Explosion Proof Ultrasonic Level Transmitter is commonly used level measurement instruments demanded across industries for the continuous measurement of the levels and volumes of different media in open and closed tanks and for flow measurement in open channels. They are a cost-effective, reliable, and accurate solution that can be used in a wide array of applications involving both solids and liquids. Since they are non-contact devices, they require minimal maintenance and suffer minimal wear and tear; Additionally, this also ensures that they can be used under difficult process conditions.

Most popular related searches
  • Simple push button calibration
  • Self-cleaning sensor face
  • Built-In temperature compensation
  • It has 3 and 4 wire operation
  • 4 mA to 20 mA or 20 mA to 4 mA outputs available
  • It provides RS232 and RS485 communication protocol
  • Fast Response Time (2 or 3 echoes per second)
  • It has good accuracy up to ±0.10% of max. range
  • Service Beverages, Pharmaceutical, Water and Wastewater, Chemical Industries
  • Wetted Materials PVC
  • Ranges 9′, 16′, 20′, 30′, 50′, 60′
  • Accuracy ±0.25% of max range
  • Response Time 2-3 echos/sec
  • Resolution 0.04″, 0.07″, 0.088″, 0.13″, 0.23″, 0.27″
  • Beam Angle 10° to 12°
  • Temperature Limits Electronic Enclosure: -40 °F to 140 °F (-40 °C to 60 °C)
  • Temperature Compensation: -40 °F to 140 °F (-40 °C to 60 °C)
  • Pressure Limits Up to 72 PSI (5 bar)
  • Power Requirement 4 Wire: 115 VAC at 60 Hz or 230 VAC at 50Hz
  • 3 Wire: 12 VDC to 30 VDC
  • Output Signal 4 mA to 20 mA as Standard or Optional RS232 or RS485 or 750 Ω on 4 Wire
  • Process Connection 1˝ NPT or 3″ NPT
  • Enclosure Rating NEMA 6 (IP68)
  • Mounting Orientation Vertical
  • Failsafe On lost echo after 60 seconds, user selectable to 2 or 22 mA
  • Memory Non-volatile
  • Weight 4.0 lb (1.8 kg)
  • Agency Approvals CE
