TekMark - Casing Holder
The TekMark Casing Holder is an external gripping device which holds strings of casing on the OD using a conventional "slip" action. It is generally used to hold the casing string in the bore hole while additional lengths of casing are added to the string.
- 70,000 lb. Capacity
- Note: Prices include one set of slips.

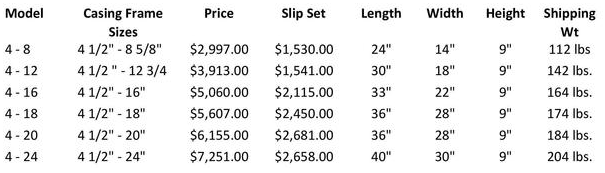

Height is to top of linkage. Handle is removable and can be installed at either end of holder. TekMark Pneumatic/Hydraulic Casing Holder add $600.00 to any model. Removable Side Plate add $366.00. Model Size is dictated by the maximum casing size that will fit into a particular Holder Frame. Note that slips designed to fit a small frame size such as 4 - 8 are less expensive than the same size slips to fit Model 4 - 26. Some drillers prefer to have several different sized models particularly if they have multiple rigs.
- Available with mechanical, air or hydraulic slip actuation
- Inclined wedge holding system, no shoulder required
- Thirty-five ton holding capacity
- Can be installed above or below drilling table.
