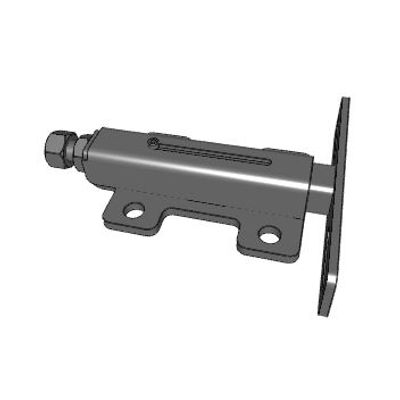

PCI - Model TS100X3TUFP -Telescoping Take-Up Frame
The PCI Telescoping Take-Up Frame (TS100X3TUFP) is engineered for applications requiring precise tension adjustment and conveyor pulley alignment. This unit is side-mounted, providing the convenience of cantilevering the pulley and bearings outside of the conveyor frame. Made from carbon steel, the frame accommodates pillow block, ball, or roller bearings, demonstrating its versatility for various industrial uses. Incorporating PCI's exclusive indicator pin, the frame enables users to quickly assess available travel in both directions, streamlining maintenance and operation adjustments. Key specifications include a total length of 7.938 inches, lateral bolt hole spacing of 3.563 inches, and a 1.5 inch frame height. The design ensures durability and reliability in demanding material handling environments, making it an essential component for efficient conveyor systems.
- UPC Code : : 00841946140838
- Series : 100
- Type : Telescoping Take Up Frame
- Style : Side/End Mount
- Compatible Bearing : Pillow block, ball, or roller bearing
- Frame Material : Carbon Steel
- CAD Disclaimer : Every reasonable effort has been made to ensure the accuracy of the information contained herein, however no liability is accepted for errors, omissions or for any other reason. Specifications are subject to change without notice.
PCI Telescoping Take-Up Frames feature our exclusive indicator pin, showing the user exactly how much travel is available in either direction. Telescoping frames are side mounted, and their design allows the pulley and bearings to be cantilevered outside of the conveyor frame.
