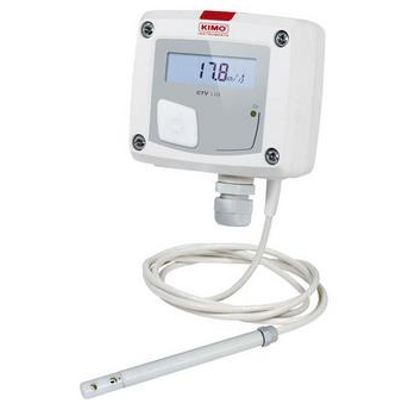

Sauermann Kimo - Model CTV 110 -Temperature and Air Velocity Transmitter

SHARE

Kimo’s CTV 110 measures temperature and air velocity from 0 to 30 m/s and from 0 to 50°C.

Most popular related searches
air velocity transmitter
2011/65/EU
air velocity monitoring
e-waste
temperature monitoring
RoHS
temperature transmitter
  • Measuring range from 0 to 30 m/s and from 0 to 50°C
  • Alternating display of air velocity and temperature
  • 0-10 V or 4-20 mA output
  • With or without 10-digits LCD display
  • “1⁄4 turn” system mounting with wall-mount plate
  • Housing with simplified mounting system
Measure details
  • Units°F, °C, m/s, fpm
Technical details
  • Parameters
    • Air velocity
    • Temperature
  • Displays
    • No
    • 1-line display
  • IP Protection IP 65
  • Standards
    • 2011/65/EU RoHS II
    • 2012/19/EU WEEE
    • 2014/30/EU EMC
    • 2014/35/EU Low Voltage
  • Power supply 24 Vac/Vdc (Active)
  • Outputs 4-20 mA (Active) or 0-10V (Passive)
  • Ethernet communication No
  • ModBus network No
Instrument Dimensions
  • Length 90 mm
  • Width 46 mm
  • Height 109 mm
  • Weight 164 g
Operating temperature
  • Min 0.00 °C
  • Max 50.00 °C
Storage temperature
  • Min -10.00 °C
  • Max 70.00 °C
