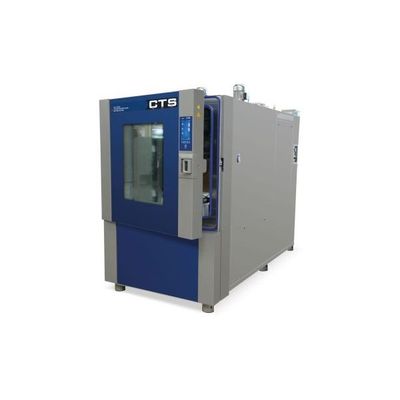

CTS - Model TS and CS -Temperature/Climatic Stress Screening Chambers
FromCTS GmbH
The CTS temperature/climatic stress screening test cabinets can achieve high change rates of up to 30 K/min. with conventional cooling technology thanks to amplified compressors and a strong fan capacity. By this means, CTS offers optimised output with low consumption figures and attractive prices. Thus, the limits of your test item can be determined more quickly. Faster change rates are optionally possible using nitrogen.
Most popular related searches
humidity measurement system
demineralized water system
temperature monitoring
air intake
water cooling
humidity measurement
level indicator
cooling system
air dryer
demineralized water
- capacitive Multi-Touch-Display in the front
- service-friendly capacitive humidity measurement system
- defined keys for elementary functions of the installation such as start/stop, fixed-value/automatic operation, interruption, light, etc.
- USB-Connection to save measuring data on USB Stick
- Ethernet-Interface
- 2 digital Out, to switch test specimen ON/OFF
- adjustable software-temperature-limiter min./max.
- shelf, stainless steel
- entry port Ø 50 mm on the right side
- single-hand operated door handle, lockable
- low consumption data
- minimum noise level
- extremely high temperature change rates
- user-friendly operation and programming
- uniform operation due to identical Multi-Touch-Display for all chamber sizes
- demineralized water system with level indicator
- temperature measuring with Pt 100 in air inlet and air outlet
- service-friendly construction
- international standards are fulfilled (CE-Conformity)
- Temperature change rates:
- 5 K/min, 10 K/min und 15 K/min
- Test space capacity in litres:
- 100 / 200 / 350 / 600 / 1000 / 1500 / 2000
- Temperature range:
- -40 °C / +180 °C
- -70 °C / +180 °C
- Design:
- Control: Multi-Touch-Display with integrated program controller
- Test space: stainless steel grade 1.4301
- Refrigerants: environmental friendly refrigerants
- Humidity system (only type CS):capacitive measuring
- add. Entry ports Ø 50 mm, 80 mm und 125 mm
- add. shelves
- panoramic window, multiple glazed, sized 570 x 710 mm, < 200 ltr., incl. LED-light
- hand-holes in the door
- add. Pt 100 for temperature measuring on test specimen reversible to controller function
- air dryer system
- mobile design
- air/water cooled refrigeration unit
- temperature protection for test specimen
- CID software for programming and documentation
- variable air speed in the test space
- notch
- Other interfaces: RS232, RS485 and USB
