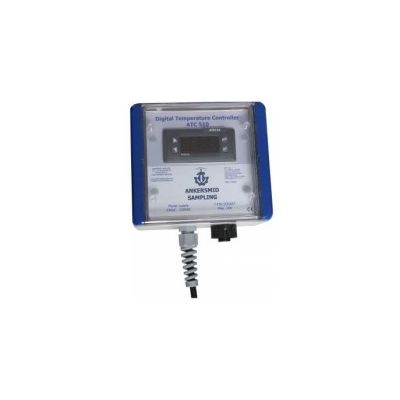

Ankersmid - Model ATC 510/520 -Temperature Controller for Wall-mounting
The electronic temperature controller is mounted in a wall-mounting housing. The temperature sensor input is developed for multiple sensor inputs (standard PT100). The desired operating temperature can be set by using the respective control keys. The actual value is indicated via 4-digit display and the controller function via LED.
Most popular related searches
The ATC 510/520 is a modern microprocessor-based (PID) control device featuring easy handling and a digital display. The clear design of the operator control level facilitates fast and reliable adjustment.
The plug-in device, which is equipped with a grounding-type plug and a multi-pole plug for the consumer unit, can be put into operation immediately.
- In wall-mounting enclosure
- Relay contact 10A/20A switching capacity
- 4-digit LCD indication
- Plug-in device
- Grounding-type plug for mains connection
- 7-pin/5-pin Multipole plug output
- Quick and easy to operate
