Ankersmid Sampling BV products

The compressor cooler series ACC 4xx offers precision, safety and long-term stability for extractive analytics. The very low gas dissolution rate is attained owing to the new cooler technology (Patents applied). Both the permanent separation of the condensate from the gas phase, as well as the shorter contact time of the gas in the system, plays important roles in reducing gas dissolution rates.

The compressor cooler series ACC 1xx offers precision, safety and long-term stability for extractive analytics. The very low gas dissolution rate is attained owing to the new cooler technology (Patents applied). Both the permanent separation of the condensate from the gas phase, as well as the shorter contact time of the gas in the system, plays important roles in reducing gas dissolution rates.

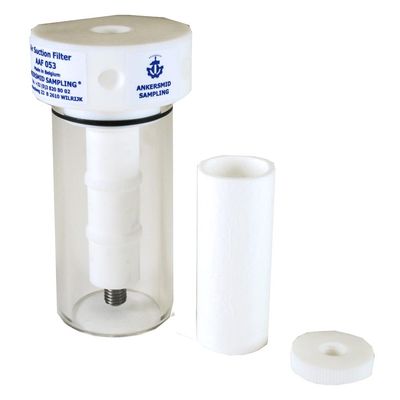

The variety of construction design of the ambient air filters AAF 050 / 051 / AAF 052 / AAF 053 allows for a perfect adaptation to local situations.

Gas flows into the filter body by one of two inlets in the standard filter head. The gas flows out of holes in the lower part of the filter and then passes through the adsorption material to exit again at the head of the filter housing.

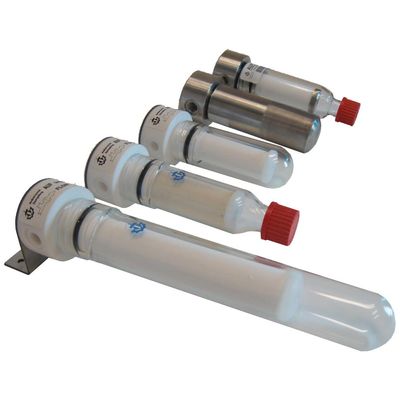

Ankersmid Universal Filters are known as a reliable technique for the separation of particles from gas, ensuring a flow of clean gas to the analyzer. Filter housings in a variety of materials and standard dimensions are available.

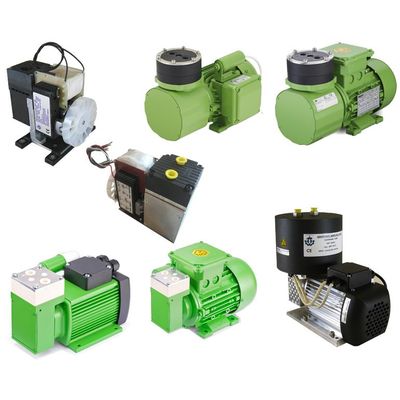

The new range of AMP pumps are equipped with the patented stress-optimized structured diaphragm, resulting in a durable product of high pneumatic performance and compact size. Special valves ensure minimum resistance to flow. The pumps can be operated by either standard 230VAC, or for ex-proof applications, with a motor with various options on voltages and frequencies.

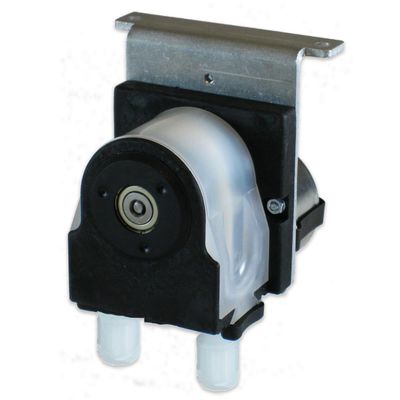

The ASR25 is a peristaltic pump designed for continuous operation. Driven by a synchronous motor a system of pulleys pushes the condensate through a special tube with a very long runtime. These pulleys are pressed by 4 springs on the peristaltic tube. A running speed of 5 rpm guarantees that the two PVDF hose pulleys and the Novoprene® hose provide good mechanical and chemical resistance with a long life time. Changing the peristaltic tube is an easy procedure that only takes seconds.
