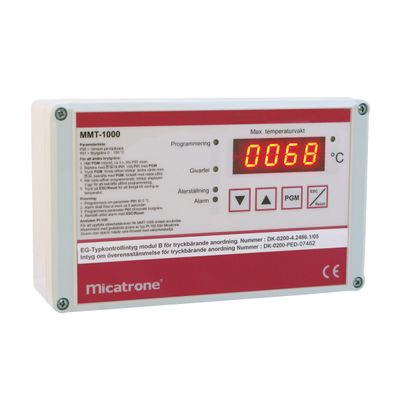

Micatrone - Model MMT-1000 -Temperature Monitor
FromAB Micatrone
The MMT-1000 is a max. temperature monitor used to break up the safety circuit of a boiler if the temperature in the supply line from the boiler exceeds a set cut-off limit. Type-approved maximum temperature monitor, certified for module B.
Most popular related searches
The MMT-1000 measures the water temperature, in the supply line from a boiler, with a temperature sensor of type Pt-100. MMT-1000 has a programmable cut-off limit and breaks up the safety circuit and gives alarms if the temperature exceeds the set cut-off limit
- Monitors the water temperature in the heating system
- Breaks up the safety circuit if the temperature exceeds the set cut-off limit
- Separate alarm output
- Manual reset via front panel or external connector
- Triggered alarm does not reset automatically after power failure
- Digital display of value and set cut-off limit
- 5 LEDs show operating status
- Own temperature sensor of type Pt-100
- High protection level, IP 65
- Product certified (type-approved) according to EC type-examination certificate module B for pressure equipment No: DK-0200-4.2486.1/05
