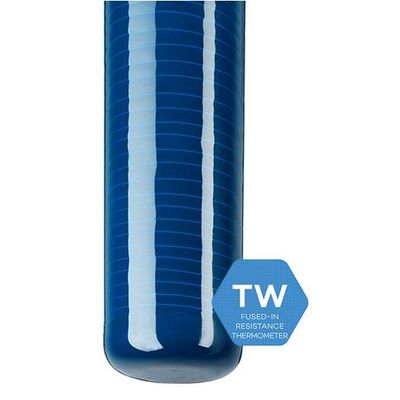

Pfaudler - Model Type TW -Temperature Probe
FromPfaudler GmbH
The functionality of Pfaudler’s type TW temperature probe relies on the temperature dependence of the electric resistance of platinum. The platinum measuring unit, a PT 100 resistance thermometer, is fused into the glass lining of baffles or thermometer wells, providing an optimal heat transfer.
Most popular related searches
temperature probe
temperature monitoring
temperature regulator
resistance thermometer
thermometer
glass lined reactor
Compared to conventional glass lined temperature measurements the heat transfer coefficient of fused-in sensors is lower, ensuring extremely low half-value times.
The temperatur probe type TW is available for all type of baffles and the Pfaudler Quatro Pipe.
- Type ; TW
- Technology ; Fused-in PT100 thermometer
- measuring range ; -60 to +200 °C
- operating temp. ; -60 to +200 °C
- Ex. protection ; II 1/2 G Ex ia IIB T6 or
- II 2G Ex ia IIC T6
- Operating pressure ; -1 to +40 bar *
- Product Benefits ;
- Fastest glass-lined probe
- Permits exact reactor temperature regulation
- Maintenance free
- Up to 3 measurement points
