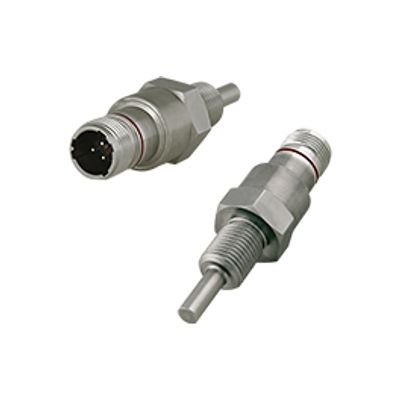

FCI - Model AS-TE -Temperature Sensor
FCI AS-TE is a compact, light-weight, precision temperature sensor for direct installation into piping and ducting on commercial and military fixed wing or rotary aircraft as well as spacecraft, vehicles and shipboard/marine vessels. These elements utillize high accuracy, highly repeatable RTD sensors (Resistance Temperature Detectors) to provide a linear change in resistance directly proportional to temperature changes in the liquid or gas process. customer. These sensors are packaged in all welded, sealed thermowells for superior service life. AS-TE can be specified with threaded or flanged conections and wiring connectors to match your installation need.
- Environmental cooling systems
- Coolant
- Bleed and PACK air
- Fuel
- Hydraulic oil
- Transmissions
- Gearboxes
- Fuel
- Cabin Air Thermostat
- Refrigerant
Service: Temperature measurement of liquids or gases
Sensor Types: Platinum RTD with Ro = 100Ω, 500Ω or 1000Ω, α0.00385Ω/°C, Class B.
Nickel RTD per MIL-T-7990
Accuracy: ± 0.3°C, ±0.005°C/°C (with Platinum RTD`s)
Repeatability: ± 0.05% of reading.
Measuring Range: -80° to +450° F [-62° to +232° C] (Higher ranges possible, contact FCI)
Proof Pressure: Up to 1500 psig [103 bar(g)].
Time Response:
- Air/Gases: 10 seconds
- Water/Liquids: 3 seconds in flowing application.
Qualifications: MIL-STD-130 Markings; MIL-STD-810 Environmental Testing; MIL-STD-7990 Temperature Transmitter.
Quality System Approvals: ISO9001 and AS9100
Weight: 1 oz to 2.25 oz [28 g to 64 g]
Materials of Construction:
- Standard: All welded 300 series stainless steel.
- Optional: titanium or other alloys per customer request.
Process Connection: Flanged or threaded per AS 930-05, 0.5000-20 UNJF-3A
Insertion Length: 0.2 to 1.0 inch [5 to 25 mm].
Electrical Connection: Military, or commercial connector; pigtail cable of customer specified type and length.
Optional N.I.S.T. Test Lab Calibration Services
