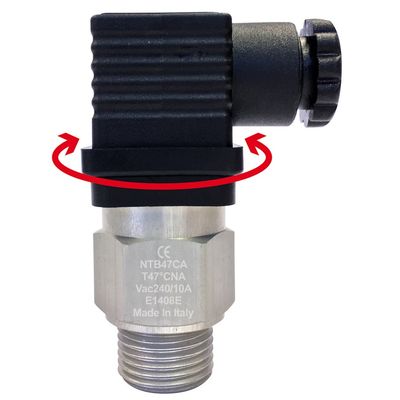

Elettrotec - Model NTB -Temperature Switches With Fixed Set-Point and 360° Rotating Head

Switch rating: 10 A / 240 Vac – 05 A / 24 Vdc – 10 A / 12 Vdc. Electrical connection: DIN 43650 – PG09 (swivel plug). Working temperature: 25°C – 31°C – 38°C – 47°C – 60°C – 70°C – 80°C – 90°C – 100°C – 105°C. Accuracy: ± 5°C. Max. differential DT: 16°C. Environment temperature: -20°C to +120°C. Max. pressure: 200 bar. Contact: NO – NC. Body material: Anodized aluminium. Thread connection: G3/8″ – G1/2″ – M22 x 1.5 mm. Protection: IP65. Dimensions: Body Ch 27 – Height 74 mm (NTB) – 84 mm (NTBM). Options: Execution with optional magnet brass body.
