Custom Control Sensors, LLC (CCS)

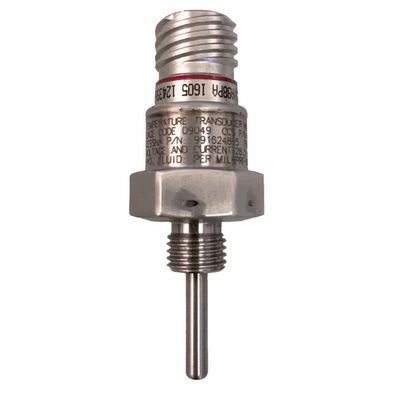

CCC - Model RTD Series -Temperature Transducer
CCS’ highly reliable and economical Temperature Transducers utilize a Resistance Temperature Detector (RTD) for monitoring the temperature of aircraft fluids and gasses. The CCS Temperature Transducer is based on platinum wire-wound or thin-film RTD elements. The RTD is designed and constructed to International IEC Standards and includes single and dual channel 100, 500 and 1000 Ohm at Zero degrees C options.
Most popular related searches
nitrogen generation system
nitrogen generating system
resistance temperature detector
stainless steel flange
lubricant system
nitrogen generator
temperature sensor
temperature monitoring
environmental system
stainless steel enclosure
Applications include:
- Hydraulic systems
- Fuel systems
- Lubrication systems
- Engines
- Landing gear
- Environmental control systems
- Nitrogen generation systems
- Bleed air
- Fluid management
Additional information
- Industry: Aerospace & Defense
- Instrumentation: Temperature Transducer
- Certification Agency Approvals: AS9100D
- Media: Hydraulic Fluid, Lube Oil, Gas, Water, Fuel
- Media Temperature Range: -67° to 600°F
- Port Connection Fitting Size: Threaded MS, Threaded AS, Threaded NPT, Flange Mounted
- Port Connection Material: Stainless Steel
- Custom Flange: YES, NO
- Housing Enclosure: Stainless Steel
- Electrical Environment: Hermetic, Environmental Seal (O-Ring Seal)
- Electrical Connector: MIL-DTL-38999, MIL-DTL-83723, Cable, EN2997
- Channel: Single, Dual
- Sensing Element Resistances at 0C: 100 OHM, 500 OHM, 1000 OHM
- Wire Configuration: 2 Wire, 3 Wire, 4 Wire
