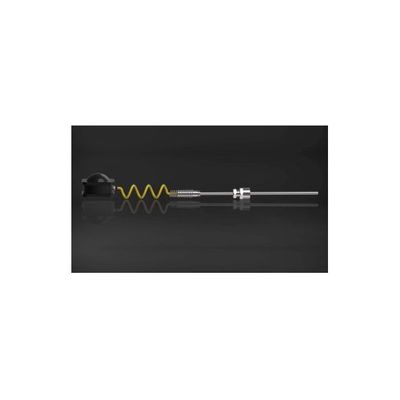

TempsensModel T - 274 -Thermocouple With Junction Box

SHARE

T - 274 Thermocouple With Junction Box & Adjustable Compensation Fitting With Stub. Mineral Insulated Thermocouples, commonly referred to as MgO (Magnesium Oxide) thermocouples, are used in many processes and laboratory applications. They are available in all thermocouple element types and a wide variety of sheath diameters and materials. They are rugged in nature and bendable, and their fairly high-temperature ratings make MI thermocouples a popular choice for a multitude of temperature measuring applications.

Most popular related searches

Type
J, K, T, E, N, R, S

Element size (MI)
0.25, 0.5, 1.0, 1.5, 3.0, 4.5, 6.0, 8.0 mm Other sizes on request

Sheath Material
SS321, SS316, SS310, HRS 446, Inconel 600, Nimonic, Pyrosil, Platinum etc.

Configuration
Simplex/ Duplex/ Multipoint

Configuration

  • Miniature Thermocouples with minimum of 0.25 m Dia
  • Swaged Tip Thermocouples
  • Tube Temperature Skin Type Thermocouples
  • Special Sensors as per ASTM-E235 for critical application
  • High Wall Thickness
