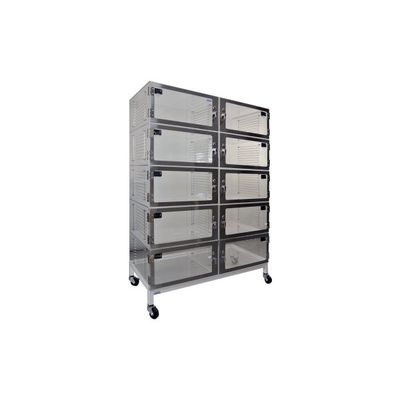

Cleatech - Ten Door Desiccator Cabinet Static Dissipative PVC 48x24x60

FromCleatech LLC

SHARE

1500 series desiccators are single and multi-chamber cabinets designed for storing humidity-sensitive samples products, and electronics in a clean, dry and oxygen-free environment. When used in conjunction with a nitrogen purge control unit or any inert gas purging, you can control relative humidity and oxygen level down to 1% and eliminate the oxygen-related degradation of samples.

Most popular related searches

pressure relief valve

nitrogen purging

digital thermometer

stainless steel plate magnet

humidity sensor

humidity thermometer

¼’’ Thick Transparent Static-Dissipative PVC.
Interior walls are static dissipative except the removable back plenum panel, which is non-dissipative PVC.
The material has a slight grey tint and is chemically resistant to most common corrosive agents. Ideal for applications that use common cleaning agents.
Eliminates static charges and keeps the dry box clean since it does not attract particles from the air. Surface resistivity of 106 – 108 ohms per square. Provides for ESD control without the need for ionization.
A grounding system for electrostatic discharge.
Overall Dimensions: 48’’ W x 24’’ D x 60’’ H
Stainless steel door frame and door hinge.
Stainless steel wire rack for shelving. A pair of wire racks is needed for each chamber and are optional if there are no shelves.
Metal lift-and-turn latch.
Single-piece Santoprene seal.
Door Opening: 22.375’’ W x 10.1875’’ H
Internal Usable Space: 22.125’’ D x 11.75’’ H

Shipping Weight; 345 lbs
Shipping Dimensions; 53 × 30 × 69 in
Part No.; 1500-10-L
Application; General Purpose
No. Of Chambers; 10
Shelf Space (Usable Area) W"xD"; 21.5×21.5
Overall Dimension W" x D" x H"; 48x24x60
Material; Static-Dissipative PVC
Chamber Size; 24x24x12
Access Door; One Side

Gas-in Port & Pressure Relief Valve (¼” OD tubing fitting)
One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.
Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)
Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14° F to 140° F)
Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14° F to 140° F)
Epoxy powder coated steel stand with caster (including two locking). Available in 30`` and 35`` height with an optional upgrade to leveling mounts.
Perforated stainless steel or acrylic shelves. (Wire racks are required for shelf placement.)
Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.
Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.
Stainless steel bottom plate installed on the bottom of each chamber.
The back plenum can be removed for applications that require isolated chambers.
