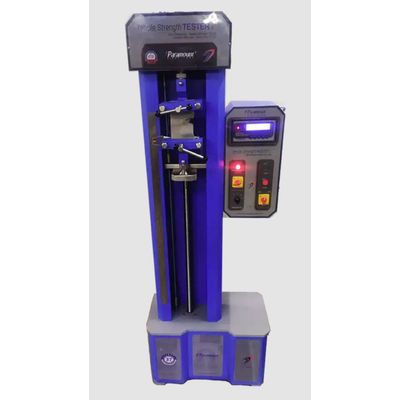

Paramount i9 - Tensile Strength Tester for Single Yarns
tensile Strength and Elongation strength of any yarn is prime property in determining its suitability for any particular application, It is therefore of utmost importance to determine these characteristics accurately. For high elongation on medium strength material like TEXTILES the suitable equipment is one having a Constant Rate of Elongation (CRE), the total travel being sufficient to accommodate the high elongation.
Paramount Tensile Strength Tester i8™ (Single Yarns) is an ergonomically designed advanced equipment which works on the constant rate of elongation (CRE) principle. The s ample is held be tween two jaws, the Upper one is a stationary jaw while the other is made to move at a preset speed with the help of special geared motor and advanced programmable electronic drive (speed can be variable from 50 to 400 mm per minute). The load exerted on the movable jaw is sensed by a sensitive sensor connected with load cell which directly indicates the load in digital form in kgf. The result of elongation is indicated directly in digital form (mm) with the help of optical sensor.
The equipment has an in-built provision for safety arrangement. It has a provision to prevent over travel of the moving jaw. It has an in-built line filter arrangement to check any fluctuations in power supply so that it does not have any effect on the result generated, thereby giving accurate result. The frame of the tester is fabricated from heavy mild steel section to give the rigidity and strength. The exclusive feature of Tensile tester is its control panel that houses all the controls and is very user friendly and easy to operate due to its convenient location .The equipment is finished in special blue & grey powder coated paint. The other parts are made with Stainless-Steel to give a corrosion resistant long life finish.
- A Next Generation Equipment to determine tensile strength of single yarns.
- Maximum capacity 50kg with 1grm accuracy, works on CRE principle.
- Digital control panel with Digital Load Display & digital elongation display.
- Grips and fixture scan be easily mounted securely with a simple locking pin.
- Control panel has peak & zero setting option.
- Sturdy and Robust construction frame with precision leadscrew and Ball Bearings.
- Fully Variable speed control from 50 to 400 mm per minute by a programmable drive.
- Maximum jaw separation 800mm & minimum jaw separation 25mm.
- Safety Limit Switches for over travel protection .
- Complete with all accessories-templates.
- Adherence to national & international Standard.
- Supplied with inspection & calibration certificates (Traceable to NPL)
Capacity: 0 - 50 kg
Sensitivity: 1grm
Speed of Machine: 50 to 400 mm / minute
Minimum jaw separation: 25 mm
Maximum jaw separation: 600mm
Motor: ½ HP, Single Phase, 230 + 10% AC Supply.
Load measurement: Digital
Elongation measurement: Digital Elongation display in mm and also Calibrated stainless steel scale with sharp pointer indicating continuous elongation.
Movement controls: Push switch for START, RESET and function.
Overload protection: Micro switches for over-travel protection.
Overall dimensions of the unit: LENGTH x DEPTH x HEIGHT, 700mm x 390mm x 1900mm, 27.5” x 15.5” x 75”
Net weight of the unit: 189 kg (416 lb)
