Termen - Model SP -Low-Loss Header Hydraulic Separators
Hydraulic separators are known under another name like low-loss header. They are designed for separating boiler and heating circuit for medium and high power systems including one or several boilers and one or several heating ciruits, provide independent operation of both circuits without the need to balance the flow rates. Low-loss header are used in high volume central heating systems (e.g. revamping).
- separation of the boiler and heating circuits,
- retaining independent mass streams in boiler and heating circuits,
- eliminating the need for balancing the flow of boiler and heating circuits,
- prevention low-temperature corrosion,
- desludging the heating medium,
- venting the heating medium,
- a horizontal version.

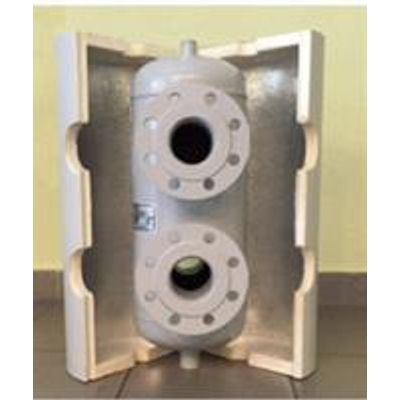

Hydraulic Separators is designed as a low-carbon steel cylindrical tank with external paint coat finish. Tank shell (1) includes four ports. Inlet (2) and outlet (3) ports connect the boiler circuit, whereas outlet (4) and inlet (5) ports connect the heating circuit. A perforated baffle (6) preventing direct water flow from the boiler to the heating system with air purging. To remove the air from the top tank section, the tank is fitted with an air relief valve port (7). The bottom tank section includes baffles (9) for easy blowdown. The separated solids are removed via a drain valve port (10).
