Komax - Model MS3xx -Test Adapter

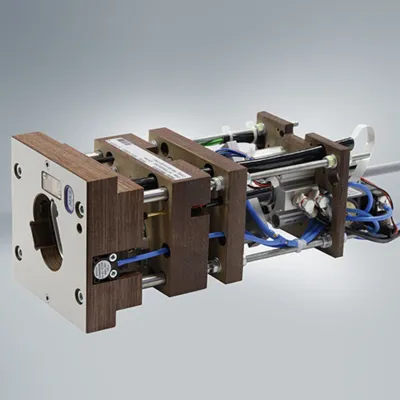

The MS3xx Test Adapter is an advanced and versatile component, with a wide range of connector options, including circular connectors and high-density connectors. One of the key features of the test adapter is its contour which contains a spring-loaded contact pin for each contact in the connector, ensuring a secure and accurate electrical connection. The contour is automatically locked by the pneumatic locking cylinder. In addition, the MS3xx Test Adapter includes variable top plate sizes that allow for convenient adaptation to your testing requirements. The status of the adapter can be easily monitored via the LEDs in the top plate. Standardized interfaces for test points, voltage, and pneumatic connections further simplify the testing process. Other models and sizes of the MS3xx Test Adapter are available on request, ensuring that you can find the perfect solution for your specific testing needs.
MS3xx
Metric
- Dimensions/height min.: 50 mm
- Dimensions/height max.: 200 mm
- Dimensions/width min.: 50 mm
- Dimensions/width max.: 200 mm
- Depth max.: 245 mm
- Total weight (100x100 mm), approx.: 1 kg
- Voltage, input, connector: Connector 2 x 2 pin
- Total power max.: 2.2 W
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: -10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 75 %
- Emission sound pressure level (according to DIN 45635) max.: 80 dB
- Protection class: IP 10
- Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
- Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
- Compressed-air connection: PU3 Schlauchende
- Current (DC) min.: 81 mA
- Current (DC) max.: 91 mA
- Test points, connector, depending on number of connector pins min.: Connector 1 x 2 pin
- Test points, connector, depending on number of connector pins max.: Connector 1 x 32 pin
Imperial
- Dimensions/height min.: 1.96 in
- Dimensions/height max.: 7.87 in
- Dimensions/width min.: 1.96 in
- Dimensions/width max.: 7.87 in
- Depth max.: 9.64 in
- Total weight (100x100 mm), approx.: 2.2 lb
- Voltage, input, connector: Connector 2 x 2 pin
- Total power max.: 2.2 W
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 14 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 75 %
- Emission sound pressure level (according to DIN 45635) max.: 80 dB
- Protection class: IP 10
- Operating pressure (according to ISO 8573-1: 5/5/4) min.: 72.51 psi
- Operating pressure (according to ISO 8573-1: 5/5/4) max.: 101.52 psi
- Current (DC) min.: 81 mA
- Current (DC) max.: 91 mA
- Test points, connector, depending on number of connector pins min.: Connector 1 x 2 pin
- Test points, connector, depending on number of connector pins max.: Connector 1 x 32 pin
