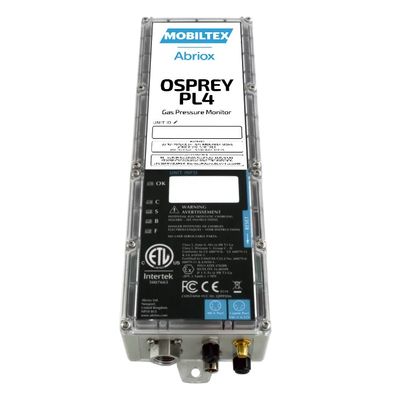

Mobiltex Abriox - Model OSPREY-PL4 -Gas Pressure Remote Monitoring System

Data is transmitted automatically or on-demand to the PressureTrac® system for displaying, interpreting and archiving the results, including easy export into 3rd party network management software and other business systems.

OSPREY is extremely versatile – in addition to routine pressure monitoring the device can be deployed in Incident Evaluation Mode (IEM) as a plug-and-play solution for monitoring alarm situations including poor pressure, blockages, ingress or non-routine operations on the gas distribution network. The simple IIoT system deployment and full autonomy with extended runtimes also make the platform an ideal solution for critical system monitoring redundancy in regions that are at risk of impacts from natural disasters.

The unit can be remotely accessed directly giving accurate pressure in real-time. Simply fix the unit in place, connect it to the gas supply and activate — from that moment on, everything is automatic. The whole process can be done in 20-30 minutes at-site and in any conditions with a confirmed signal.

A key feature of OSPREY is its inbuilt GPS module which provides timing reference so that measurements are logged precisely, with no drift or offset. No manual data cleansing is required. GPS also enables the software to identify its geographic location automatically, ensuring that data is always uniquely identified with the correct monitoring point.

• >10Yr Battery Runtime
• Future-proofed CAT-M1 [LTE-M 4G/5G] Cellular Backhauls
• IP68 Ingress Protection
