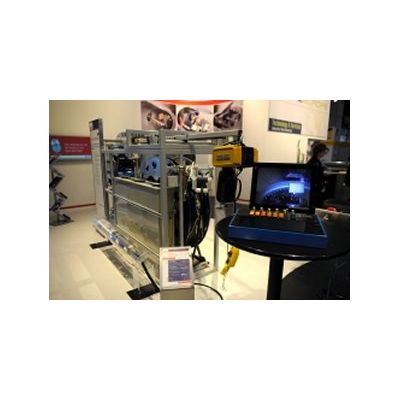

KA-TE COMPACTThe Mobile Multifunctional System

SHARE

KA-TE systems are delivered ready for use in various vehicle systems. With the KA-TE COMPACT, we offer a mobile system, which can also be developed into a multi-functional system. The KA-TE COMPACT makes projects in difficult to access areas possible into which large vehicles cannot drive. The COMPACT system allows the user to conduct high-quality robot rehabilitations (milling, filling, pressing) in these difficult conditions. This KA-TE system also offers great advantages for international users that want to carry out the vehicle selection and the installation individually on site. The KA-TE COMPACT can be delivered on short notice due to its construction without a vehicle.

Most popular related searches

Steel tube frame L x B x H = 2100 x 800 x 1850 mm with integrated units:

  • Tare weight 850 kg / charge weight 1100 kg
  • Electronically controlled cable / hose drum
  • Robot cable / hydraulic hose package (85 m)
  • Hydraulic system 5.5 kW / 150 bar / 18 L/min
  • Water tank approx. 250 L, water pump
  • Compressor
  • Electronic cubicle with open-loop control electronics
  • Cable drum with distance measurement
  • Control console with integrated keypad for data display
  • 15» fl at screen
  • Additional remote control
  • Integrated extendable and swivelling crane unit
  • Water and air pistol
