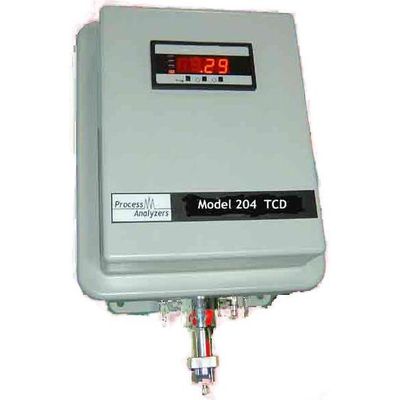

PID Analyzers - Model 204 -Thermal Conductivity Analyzer for Process and QC Monitoring
The Model 204 is a continuous TCD Analyzer designed for continuous or process control. It has optional 4-20 mA output, RS485, MODBUS, 2-3 programmable setpoints, larger pump, bypass flow & and a 19`` rack or industrial wall mount NEMA 4 enclosure. This 204 has a rugged TCD with a sealed reference cell, Operator`s Manual, configuration software and RS232 cable. The detector is the TCD.
Most popular related searches
thermal conductivity analyzer
zero gas
zero air
conductivity analyzer
wall mounted enclosure
H2S monitoring
gas calibration
thermal analyzer
TDS range
TDS
- TCD: Our very stable TCD has a sealed reference to minimize maintenance.
- ADC: Our 16 bit ADC provides a resolution of 1 part in 64,000 and our signal algorithm minimizes noise by signal averaging in the msec range./td>
- Enclosures: 19`` rack mount or NEMA 4 wall mount.
- Programmable Voltage/current output: 0-1VDC/4-20 mA.
- Ease of calibration - SemiAutomatic or Remote Automatic: The two point calibration for the TCD uses a zero gas and a span gas. It is initiated by a push button switch. The time to calibrate is about 1 minute. The FID requires zero air and span gas for calibration. In the 204, the calibration valves are built into the Analyzer. The remote calibration can be activated by a PLC controlled contact closure.
- Digital outputs: RS485, MODBUS.
- Display: Our 2 line by 16 character display is backlit. The upper display provides the concentration and the bottom display provides the sensor, units, alarm and logging mode. For multisensor units, a 3 readout LED is used.
- Programmable setpoints: The 1-3 setpoints (depends on the options) can be programmed for PID control, above/below setpoints.
- Species measured: He, H2, Ne, CO2, binary gases with a difference in thermal conductivity is required
- Sample flow rate: > 1 LPM
- Power consumption: < 50 watts maximum; 115 VAC, 0.4 amps
- Performance: Depends on species being measured
- Sensor(s): single - TCD only
- Span Drift:
- Dimensions:
- 19`` Rack mount - 19`` W x 5 1/4``H x 14``D
- Wall - 23``W x 21``H x 10``D
- Precision: +/- 2-3% of reading
- Range: 100 ppm to 100%
- Weight:
- 19`` Rack mount - 12.2 pounds TCD
- Wall - 19 pounds TCDResponse time:
- Linear Range: See range.
- Instrument operating conditions: 5-40 degrees C, 0-95% RH (non-condensing)
