C-Therm - Model Trident - Thermal ...

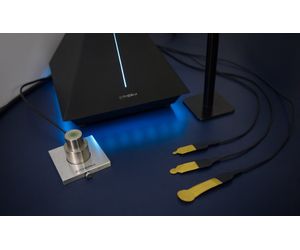

C-Therm - Model Trident -Thermal Conductivity Testing Equipment & Supplies

The C-Therm Trident is an advanced system for accurate and rapid thermal conductivity and thermal effusivity measurement. Designed for R&D and industrial quality control, it combines MTPS, TPS and TLS technologies in one versatile platform. The Trident enables reliable testing of solids, powders, pastes and liquids with minimal sample preparation. It supports applications in polymers, electronics, battery development, aerospace, automotive and insulation materials. Fast measurement cycles and high reproducibility make it ideal for material characterization and product development. With precise data across a broad conductivity range, the Trident improves thermal management design, quality assurance and performance validation. Its intelligent data processing ensures consistent, standards-compliant results. Enhance your thermal analysis capabilities and accelerate innovation with the C-Therm Trident. 👉 Contact us for technical consultation or a product demonstration.

Most popular related searches

thermal conductivity monitoring

thermal conductivity testing

thermal conductivity sensor

conductivity monitoring

thermal analysis

sample preparation

material characterization

conductivity testing

liquid sampling

conductivity sensor

Thermal Conductivity Range: 0.01 to 500 W/mK
Thermal Diffusivity Range: 0.01 to 300mm²/s

System includes:
- Trident Thermal Property Analyzer Electronic Control Unit
- Standard Laptop w/ Windows 10® Operating System
- Small Volume Test Cell
- Pelican™ Transport Case
- C-Therm TC3™ Software License

Modified Transient Plane Source
1 × MTPS Sensor
- Thermal Conductivity: 0.01 to 500 W/mK (Max-k)
- Temperature: -50ºC to 200ºC (option for up to 500ºC)
- Samples: Solids, Liquids, Powders, Pastes

Transient Plane Source
3 × Flex TPS (hot disc) Kapton based sensors
- Thermal Conductivity: 0.03 to 500 W/mK
- Temperature: -50ºC to 80ºC (option for up to 300ºC)
- Modules: Bulk, Slab, Anisotropy

Transient Line Source
1 × 150mm TLS Needle Probe
- Thermal Conductivity: 0.1 to 6 W/mK
- Temperature: -55ºC to 200ºC
- Samples: Viscous liquids, Aggregates, Unconsolidated Solids, Polymer Melts

Environmental control chamber sold separately.

👉 Contact us for technical consultation or a product demonstration.

C-Therm - Model Trident -Thermal Conductivity Testing Equipment & Supplies

C-Therm Trident Thermal Conductivity Measurement
