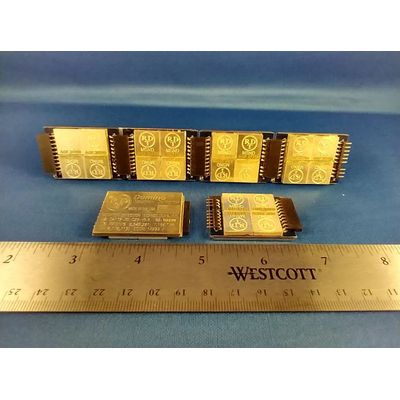

RDT - Model Domino -Thermal Neutron Detector
The Domino® provides the smallest form factor, high efficiency alternative to He-3 for thermal neutron detection while retaining minimal sensitivity nuisance gamma ray-radiation. In recent years, Dominos have been successfully integrated into many larger detector systems that have been successfully deployed. The Domino® and other MSND-based technologies that have been SWAP-C optimized into your radiation detector suite. The Domino® has a digital output per module and the digital outputs may also be tied together in the tiled format.
- Detector: 4 cm2
- Thermal neutron eff.: 30% ± 1%
- Gamma sensitivity: < 1 cts/min. from Cs-137 source delivery 5.0E4/cm2/sec.
- Power Consumption: <1mW
- 1-D Tileable amplifier IC module with digital TTL output
- Size: 38mm x 27mm x 5mm
- Weight: 9.5 grams
A strong demand for thin form factor neutron detectors with the flexibility to adjust available detection area has driven RDT to offer the end-to-end pluggable Domino® with 4-cm2 detection area, 30% thermal neutron efficiency, less than 0.3-mW power consumption, and digital output per module. The digital outputs of the Domino® may also be tied together in the tiled format.
The Domino® V5.4 Neutron Detector is calibrated to 30% thermal neutron detection efficiency, however, other desired efficiencies can be calibrated. As an advantage, a reduction in neutron detection efficiency will increase the gamma-ray rejection of the Domino® Neutron Detector.
Homeland Security & Defense
Border Screening
Healthcare
PET/CT, SPECT/MRI Instruments
Fundamental Research
Neutron Scattering Beam Lines
Industrial Monitoring
Personnel Monitoring, Water Content in Soil
Carbon-Based & Alt Energy
Exploratory Fossil Fuel Drivers
