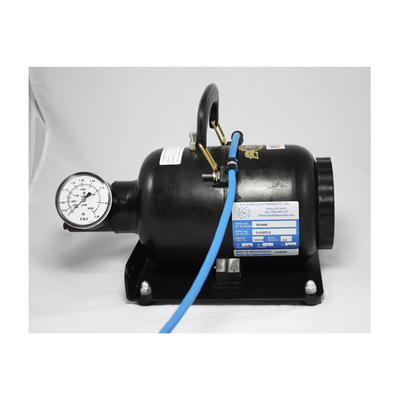

F&J - Model T9400 and T9400E -Thermally Protected High Volume Air Sampler

FromF&J Specialty Products, Inc

SHARE

The T9400 (100VAC) and the T9400E (200VAC) Series Air Samplers are lightweight, compact, high volume air samplers with a two-stage, thermally protected electric motor driven vacuum blower. The unit is equipped with a mounted on-off switch. The T9400/T9400E Air Samplers are equipped with a 4” (102 mm) standard filter holder. Each unit utilizes a heavy-duty polypropylene plastic housing.

Most popular related searches

high volume air sampling

high volume sampling

flow monitoring

flow monitoring system

combination filter holder

plastic filters

flow calibration

Thermally Protected Motor
Very durable polypropylene plastic housing
Lightweight
Chassis mounted on-off switch
Affordable for air sampling in highly contaminated areas where disposable use is required
Powerful 1.4 H.P. dual ball bearing motor
Optional flow monitoring system
100Volt or 200Volt models available

Pump Type: Two stage, thermally protected dual ball bearing vacuum blower motor; 1.4 H.P.
Maximum Capacity: 91 CFM under zero load at STP and 120 VAC (230 VAC) line power
Ultimate Vacuum: 90” of H2O at STP and 120V (230V)
Power Requirements: T9400 – 100-120VAC; 50/60Hz; single phase
T9400E – 200-240VAC; 50/60Hz; single phase
Power Cord: 7’; 18 gauge, 3 conductor
Exterior Housing: Heavy duty polypropylene plastic
Flow Measurement: Optional 10-70 CFM dial on pressure gauge
Flow Calibration: Factory established
Dimensions: 11”L × 8 ½”W × 6 ½ ”H
(27,9 L × 21,6 W × 16,5 cm H)
Weight: 6 lbs. 15 oz. (3,2 kg) without filter holder
Handle: Durable plastic
Filter Holder: A durable plastic 4-inch (102 mm) diameter holder is standard.
Note: This unit should always be used in a fuse-protected electrical outlet.

Three Gauge Models Available

Model FM50TA Flow Monitoring Gauge (10 – 70 CFM Scale)
Model FM50TA2880 Flow Monitoring Gauge, Dual Scale (10-70 CFM / 300-2000 LPM)
Model FM50TA2881 Flow Monitoring Gauge, Dual Scale (.5 – 2 CMM / 300-2000 LPM)

Model HV-1SA or HV1SAP Adapter
An adapter to reduce from 4” diameter to 1.83” FPT
Model FJ304 Combination Filter Holder
Holds 3.4”D × 1.2”H charcoal filter and 4” diameter filter paper
Model FJ2100 Filter Holder
8”×10” particulate filter holder may be utilized directly on the unit
