Tempsens - Model T - 502 - Thermocouple ...

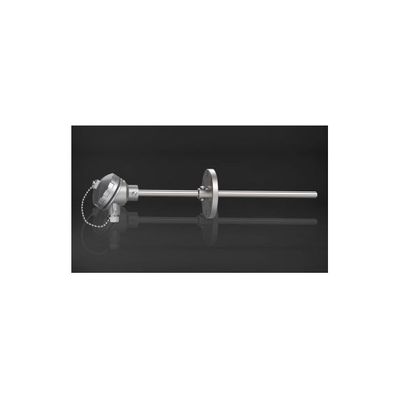

Tempsens - Model T - 502 -Thermocouple With Thermowell & Adjustable Flange

T - 502 Thermocouple With Thermowell & Adjustable Flange. Base Metal Thermocouple types are composed of common, inexpensive metals such as nickel, iron and copper. The thermocouple types E, J, K, N and T are of this group and are the most commonly used type of thermocouple.

Most popular related searches

thermocouple protection tube

thermocouple temperature sensor

Thermocouple sensor

Type
J, K, T, E, N

Element size
1.2,1.6,2.0,2.5,3.2 mm Other sizes on request

Sheath Diameter
3.0, 4.5, 6.0, 8.0 mm Other sizes on request

Sheath Material
SS304,SS321, SS316, SS310, Inconel 600

Thermowell Material
HRS 446, Inconel 600/601/800,Nickel,Hastalloy etc.

Configuration
Simplex/ Duplex/Multipoint

Tempsens - Model T - 502 -Thermocouple With Thermowell & Adjustable Flange

Product Details
