Thermofox - Temperature Monitor and Data Logger
The smart temperature monitor and universal data logger for numerous sensors and measured variables. Wherever you need to display, monitor and record temperatures but also many other measured variables, the Thermofox Universal is the right data logger system for your application! An excellent solution for the temperature monitoring of cold storage houses, when transporting and storing goods, in air conditioning and heating system construction, in refrigeration engineering or for observing the weather. Wherever it is important to record temperatures without interruption for a long periode, Thermofox Universal provides a powerful and inexpensive solution.
But that`s by no means all! Thanks to its extremely flexible expansion bus (Universalbus®), numerous of our powerful expansion modules can also be connected to the Thermofox Universal. These include, among others, the following modules: Material Moisture Gigamodule, Thermocouple Multiplexer, Temperature Multisensor Module, Soil Analysis Sensor, Thermo-Hygro-Sensor, Universal HUB, Wireless Climate Sensor, °C/%rH Puncture Sensor and many more!
- Fields of application: Thanks to the enormous flexibility and expandability of the Thermofox Universal, this data logger can be used for a wide variety of tasks. Some examples are: Monitoring of storage rooms, transportation, air conditioning and heating systems, high temperature analysis, building moisture and wood moisture monitoring, air humidity monitoring and sorption isotherms analysis, soil moisture monitoring and much much more
- Flexible alarm output for SMS alarm system, acoustic alarm system and much more
- Records 4000 readings (optional up to 64000 readings), sufficient for several years, depending on the programmed measuring rhythm
- When the memory is full, the oldest readings are first overwritten (ring buffer principle)
- Recording rhythm (1 second to 24 hours) freely adjustable via SoftFOX analysis software
- Automatic min/max monitoring for the registration of extreme values without interruption
- Flexible sensor equipment: one internal sensor (-10 to +50°C), two optional external sensors (-30 to +120°C) can be connected (please also see our Thermocouple Multiplexer)
- Directly compatible with our Remotefox (telemetry system and remote data transmission)
- Differential temperature measurement possible
- Crystal oscillator controlled real-time clock and real-time calender integrated
- Measuring data preserved via EEPROM memory even without batteries
- Power supply via two standard AAA micro batteries
- Battery lifetime up to two years (see configuration). Batteries can be replaced at any time
- Measuring resolution of the temperature sensors: 0.1°C
- Measuring accuracy of the temperature sensors: < ±1.0°C
- Dimensions: 110 x 60 x 20 mm (h x w x d), 100g including batteries
Its flexible sensor equipment makes this data logger itself a universal thermograph that can be used anywhere. Designed to be operated completely independent of the PC, the Thermofox Universal measures directly the temperature of up to 3 sensors at a time and automatically stores them in its memory. The large display shows the current temperature and the maximum and minimum values of the last few days when you press a button. The readings can also be transferred to a computer and further processed there with our powerful SoftFOX analysis software (optionally available). Furthermore the recorded data can be printed out on site via our portable miniature printer.
You don`t want to manually download the collected data of your systems on-site, but rather conveniently receive, process and evaluate it directly in the office?

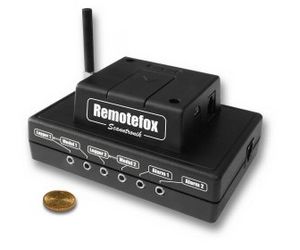

With the Remotefox, this is easily achievable! You will receive an immensely powerful telemetry and alarm system for the worldwide mobile and wireless transmission of all your collected measurement data.
Simply connect up to two complete data logger systems, including all expansion modules, to the Remotefox. You will fully automatically receive the collected measurement data as an attachment by email at regular intervals. Once received on your computer, you can evaluate the measurement data just as if you were directly on-site.
The Remotefox is powered by normal batteries and can transmit the collected measurement data independently from the power grid for several years. Since the measurement readings are transmitted via email, there will be no subscription fees and no SaaS (Software as a Service) charges!
