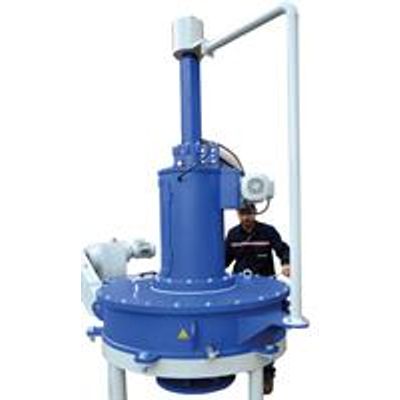

Ketmak - Model 904 -Thickener Reducer

SHARE

Reducer Moment 120.000 Nm. Shaft Diameter 200 mm. Revolution Power 0,75 Kw. Lifting Power 1,5 Kw. Scrapper Speed 2,5 m/min. Protection Class IP 55. Lifting Mechanism Stroke 500 mm.

Most popular related searches
worm gearing
mechanical switch
level indicator
worm gear reducer
thickener
  • Lifting-Lowering Control By mechanical switch
  • Torque Control By invertor
  • Electricity Delivery By Copper block brush
  • Reducer Gear Oil Gravis MP680 No
  • Sealing Oil seal
  • Turning Motion By 3 pcs dovetail canals
  • Control Panel Local panel on the bridge
  • Drive Gear Material Aluminium alloy bronze
  • Worm Gear Material Hardened and sanded 8620 quality cemented steel
  • Mechanical Level Indicator Included
