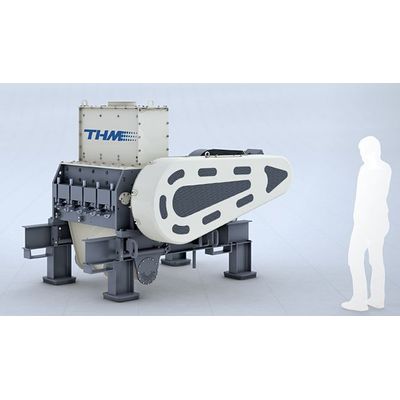

THM - Model CM - Cutting Mill
From Tires
The THM CM Cutting Mill is the right choice for cutting of pre-size-reduced parts into smaller granules. Size reduction takes place by a wear resistance rotor with rotating knives which are cutting against stator knives. The final granule size is determined by the size of the screen holes. The granules are discharged pneumatically at a discharge trough with a discharge screw at the bottom of the machine.
Areas of Application
Great in size reduction
Designed for the size reduction of aluminium, copper cables, or tire rubber. The perfect size reduction machine for pre-cut parts:
- Pre-size reduced pipes
- Profiles
- Car bumpers
- Rejects from injection moulding
- Stamping grids
- Copper cables
- Rubber granules
- etc.
Benefits
CM cutting mill: All benefits at a glance
- Robust and stable
- Compact machine with a small footprint
- Screens with different screen-hole sizes available
- Knives are easy adjustable with a jig
- High live time of knives hence low cost for wear parts
- Quick change of knives because of pre adjustment of knives outside of the granulator
- Rotor shaft and bearings protected against grinding dust
Material Fractions
CM cutting mill: processed materials
- Pure grade aluminium- and copper-fractions
- Rubber and plastic granules with a grain size smaller 4 mm
Specifications
- Power 90 kW
- Rotor Ø 495 mm
- Infeed Opening approx. Ø 300 mm
- Dimension (L/B/H) approx. 2000 x 2400 x 1100 mm
- Weight approx. 5,5 t
