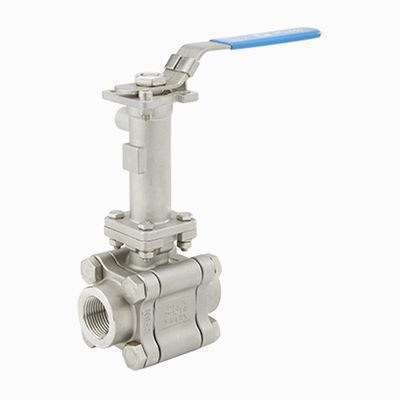

JFlow Controls - Model DM4600 Series -Three Piece Ball Valve

• UL certified
• LDAR compliant ISO-15848, TA-LUFT emissions certification
• NACE MRO175
• STEP Files available in Documentation Tab
• 2160 psi
• Body and end caps quality investment casting
• ISO 5211 direct mounting pad
• Adjustable stem packing
• Standard in Stainless Steel or Carbon Steel
• Blow-out proof stem design
• 100% air tested under water at 100 psi
• With locking function

SIZE

• 1/4″ – 4″

BODY MATERIAL

• WCB
• 316
• Alloy 20
• Duplex
• Alloys

TRIM MATERIAL

• 316
• Alloy 20
• Duplex
• Hastelloy C

PACKING MATERIAL

• PTFE
• Graphoil
• TFM

PORT

• Full port

END CONNECTIONS

• NPT
• SW
• BW
• Flanged 150-600
• Metric threads

TEMPERATURE

• -330°F to +600°F

• Spring return (dead man) handle
• Extended stem for isolation
• V-ball for control valve in 15°, 30°, 45°, 60°, 90°, slot and custom
• Automation applicable
• Fugitive emissions bonnet
• PTFE/PFA coating (40-70 um)
• Alloy 20 / Monel / Hastelloy C276 / Titanium / Duplex 2507
• Cryogenic valve to -330°F

• Fire safe to API 607, 7th Edition
• LDAR compliant ISO-15848-1
• UL certified for fluid types
• NSF/ANSI 61 Section 8-2017 by Truesdal Laboratory for drinking water
• CRN

• Water and wastewater
• Steam
• Fluid
• Vacuum
• Oxygen
• Handling petroleum products
• Flammable or hazardous services
• Corrosive services and normal services
