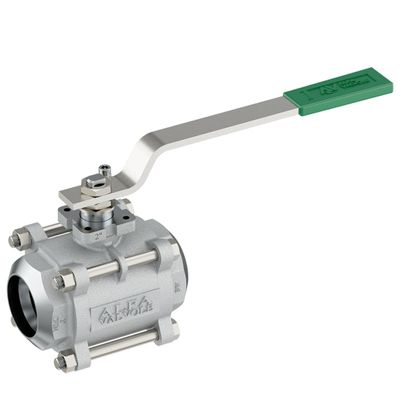

ALFA VALVOLE - Model 24K PN 40-63 -Three-Piece Body Ball Valve
FromAlfa Valvole
The Alfa Valvole 24K is a robust, three-piece body-type ball valve engineered for efficient in-line maintenance and extended durability. Its compact design caters to a wide range of industrial applications and media. The valve's construction allows for easy removal from the line without dismantling the ends, accommodating sizes from 1/4” to 4” (06 to 100 DN) and pressure ratings of PN 63 for DN 06 to 40 and PN 40 for DN 50 to 100. The temperature range for the WCB body is -29°C to +200°C, extending to -40°C for CF8M bodies. It includes a stem O-ring for maximum sealing to minimize fugitive emissions, an antistatic device following API6D and ATEX standards, and an anti blow-out stem design to prevent stem expulsion under overpressure. The valve is compatible with actuators as per ISO 5211 standards and incorporates a fire-safe gasket configuration tested according to EN10497, API6FA, and API607 standards.Most popular related searches
ball valve
fugitive emissions
fugitive emissions control
gaskets
fire test
fire testing
valve actuator
emissions control
Three pieces body type ball valve. Designed for simple, in-line maintenance and long reliable service. Three pieces body type. The compact design make this valves useful for a wide range of application, industries and medium. Designed for simple, in-line maintenance and long reliable service. Valve body can be extracted from the line without disassembling ends.
- Size range: 1/4” ≤ DN ≤ 4” / 06 ≤ DN ≤ 100
- Pressure range: PN 63 (DN from 06 to 40) – PN40 (DN from 50 to 100)
- Temperature range BODY WCB: -29°C ≤ T ≤ +200°C (standard execution)
- Temperature range BODY CF8M: -40°C ≤ T ≤ +200°C (standard execution)
