Imo Pump

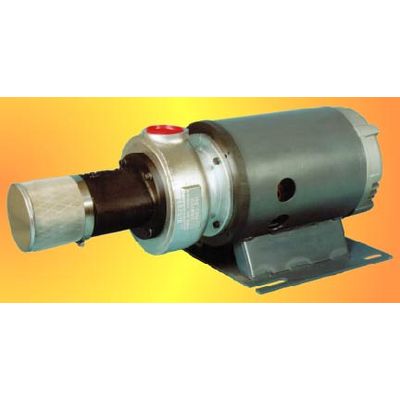

Imo - Model USNP/4PIC Series -Three Screw Pump
FromImo Pump
Series USNP/4PIC are designed for direct drive via submerged two pole electric motors. They supply pressurized fluid to hydraulic elevator cylinders.
Most popular related searches
deep groove ball bearing
screw pump
three screw pump
strainer filter
fluid pump
hydraulic cylinder
strainer
- Rotor Housing- Cast Aluminum (in sizes 100 & 125)
- Power Rotor- Alloy steel, thread ground
- Idler Rotors- Pearlitic gray iron or alloy steel, thread ground.
- Bearing- Internal, open, deep groove ball bearing.
- Outlet Pressure- 1000 PSIG.
- Inlet Pressure- Designed to be submerged in the fluid pumped.
- Viscosity- 60 SSU (10 CST) minimum.
- Temperature- 0 to180°F (-18 to 82°C).
- Drive- Direct drive only.
- Rotation- Clockwise facing pump shaft standard.
- Mounting- May be mounted in any orientation.
- Filtration- Pumps are supplied with mesh suction strainer.
- Maximum Speed- 3600 RPM
