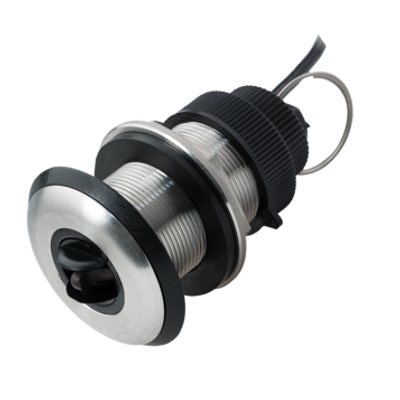

Airmar - Model ST850SS-A -Thru-Hull Analog Speed and Temperature Sensor
The ST850/800 is an analog, retractable speed and temperature sensor. The sensor fits inside a low profile, stainless steel thru hull housing that is nearly flush to the hull, with only 5 mm (3/16”) extending outside of the hull. The housing has a valve assembly that helps to minimize water ingress in the bilge when the sensor is removed for routine maintenance of the paddlewheel.
Most popular related searches
- Speed and temperature
- Speed Range: 2 to 45 knots (2 to 52 MPH)
- Analog output
- Retractable insert in a low-profile stainless steel housing with a water valve
- Also available in a plastic or bronze housing with water valve
- Retrofits into B617V, P617V, SS617V, P217, P314or ST650 housing
- Functions: Speed, Temperature
- Mounting Style: Low Profile Thru-Hull
- Power Rating: N/A
- Protocol Output: Analog
- Housing: Stainless Steel
- Hull Material: All hull materials
- Hole Size: 51 mm (2")
- Retractable housing: Yes
- Cable-Length: 9 m (30’) Analog cable
- Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
- Data Rate: 1X per second
- Pulses: 17,000 p/nm* (4.8 Hz per knot)—*p/nm = pulses per nautical mile
- Retrofits: Retrofits into B617V, P617V, SS617V, P217, P314 or ST650 housing
- Speed Range: 2 to 45 knots (2 to 52 MPH)
- Temperature Accuracy: ±0.5°C (±1.8°F)
- Tilted Element: No
- Usable Shaft Length: 55 mm (2.15")
- Voltage: 9 to 16 VDC
- Water Temperature: -10° to 40°C (14° to 104°F)
- Weight: 1.3 kg (2.8 lb.)
