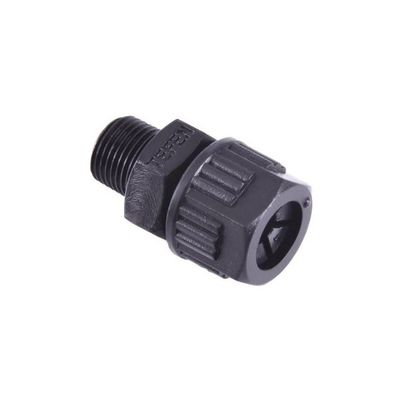

Tefen - Model 22006803022 -Tight Push Fittings Acetal Male Connector
Product Code: 22006803022. Name: Tight Push Fittings Acetal. Size Units: Imperial. Material: Acetal. Thread Type: BSPT. Color: Black. Temperature Range: -20° C up to +90° C. Working Pressure: Up to 14 bar (200 psi) at +20° C. Thread Size: 1/8″. Tube Outer Diameter 1: 3/16″. Carton Quantity: 500.
Application
Hydraulic and pneumatic systems mostly indoor applications. Quick assembly without dismantling the fittings. Allowing uninterrupted passage of water or air.
Comments
Assembly: The tube is pushed into the connector and secured by a nut tightening the outer surface of the tube and sealed with a grip ring and NBR "O" ring.

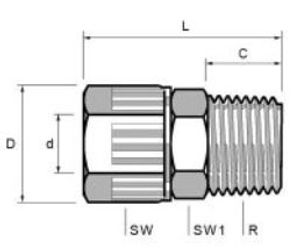

- Product Code: 22006803022
- SW: 14
- D: 16.5 mm
- L: 27 mm
- C: 8 mm
- d small: 7.2 mm
- OD inch: 3/16″
