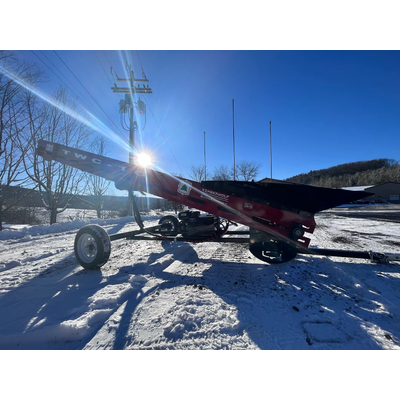

The TWC-16 firewood conveyor has a 16` reach and can operate as high as 10` in the air. The wood conveyor comes standard with self-aligning tapered rollers for belt tracking and a hydraulic lift cylinder for height adjustments.
The TWC-16 conveyor has a maximum working height of 10', a minimum working height of 7'9", and a travel height of 7'.
At its full functioning height, the firewood conveyor can store a huge stack of seasonal firewood, and at its lowest working height, it can load the bed of a pickup truck. Then, using the same pickup, you can attach the wood conveyor with a 2" ball hitch and move on to your next project.
Adjusting the height of the log conveyor is easy with our hydraulic lift cylinder. The lift cylinder is controlled by a single-spool valve and can be adjusted multiple times to meet the needs of each project.
Constructed from 3/16" High Steel plate steel on the bottom and 1/8" on the sides, the hopper is rugged and bolts on for easy removal and upgrades. The TWC-16's modular hopper makes loading logs easier, as its funnel shape allows it to be filled directly with the loader's buckets.
A ground skid is included with all TWC models. The ground skid maintains contact with the hard ground, ensuring the firewood elevator is stable when handling heavy loads. It also raises the roller off the ground, making room for falling debris.
The fines deflector does the same for debris separation. It prevents dirt from falling into the roller. These features result in a cleaner stack of firewood at the end of the conveyor and a longer product life.
Belt tracking is a constant problem with many conveyor belts on the market, causing production stoppages that we aim to avoid with our TWC wood elevators. Due to the design of the log conveyor's tapered rollers, if the belt is misaligned, it will retract to the center, even if the conveyor is on uneven ground.
Optional 36" long Grizzly Bars can be added to the firewood splitter. This optional accessory attaches to the end of the conveyor and wipes out fine material from firewood before unloading. Grizzly Bars can only be installed on the TWC-16, TWC-24, and TWC-32 models manufactured after July 2017.
Tapered rollers that self-adjust for correct belt tracking
Ground skid that provides additional stability by anchoring to solid ground
Rubber belt fines deflector that prevents debris from falling into the roller
Hydraulic lift cylinder controlled by a tandem center spool valve
