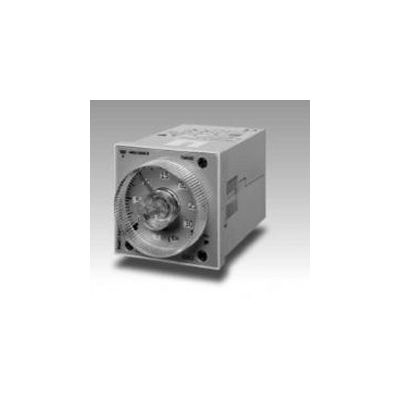

Carlo Gavazzi - Model FAA01 & FAA08 -Timers Counter
Delay on operate timer with 4 functions and selectable time ranges from 0.05 seconds to 300 hours. Housing 48 x 48 mm for front panel mounting and on 8-pin or 11-pin socket.

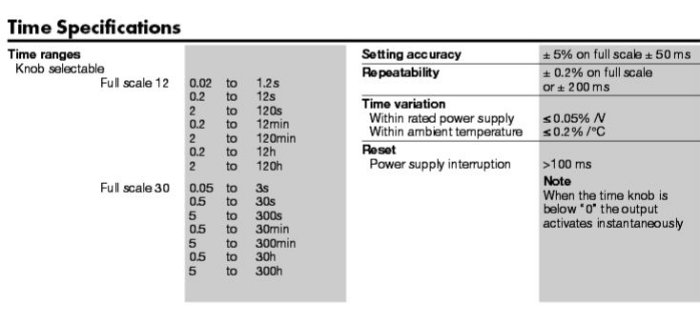

- Tim e range 0.05 s to 300 h
- Knob selection of time range
- Knob adjustable time setting
- Knob selection of operating mode (4 functions):
- Op - delay on operate
- R - symmetrical recycler ON first
- In - interval
- Sh - one shot
- Automatic start
- Repeatability: ±0.2% on full scale

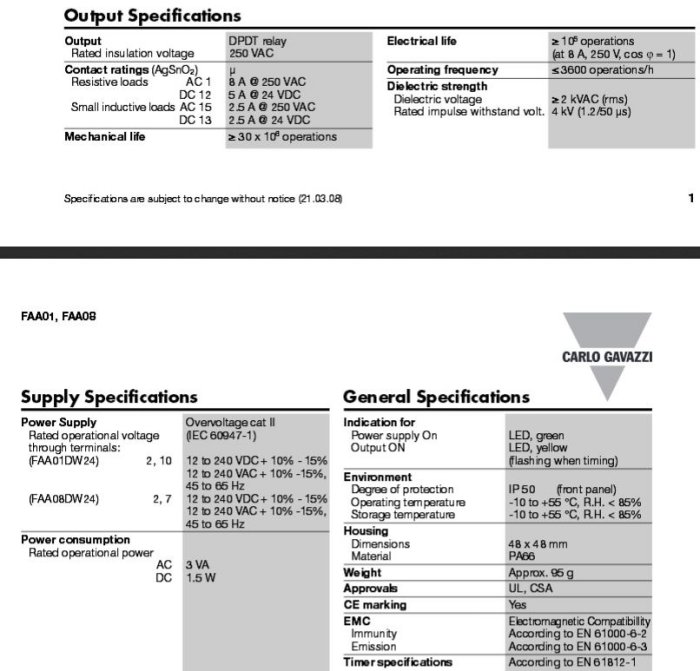

- Output: 8 A DPDT relay
- 48 x 48 mm housing for front panel mounting
- 8 or 11 pin socket
- LED indication for relay status and power supply ON
