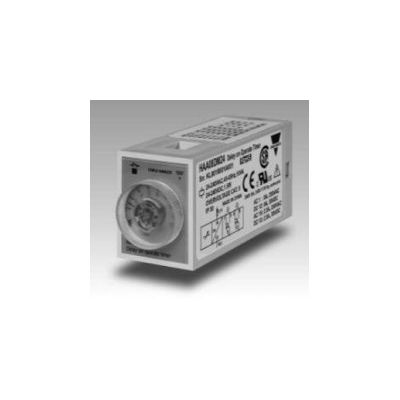

Carlo Gavazzi - Model HAA08 & HAA14 -Timers Counter
Delay on operate timer with Housing 21.5 x 28 mm with. 4 functions and selectable 8-pin and 14-pin blade time ranges from 0.1 sec- socket, ondsto 100 hours.
- Time range 0.1 s to 100 h
- Dip-switch selection of tim e range
- Knob adjustable time setting
- Dip-switch selection of operating mode (4 functions):
- Op - delay on operate
- R - symmetrical recycler ON first
- Rb - symmetrical recycler OFF first
- In - interval
- Automatic start
- Repeatability: ± 0.3% on full scale
- Output: 8 A DPDT relay (HAA08), 5 A 4PDT relay (HAA14)
- 21.5 x 28 mm housing
- 8-pin, 14-pin blade socket for HAA08, HAA14 respectively
- LED indication for relay status and power supply ON
