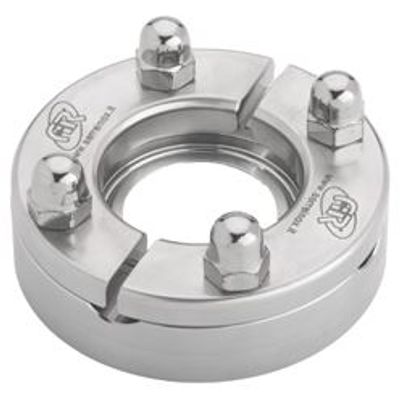

Aerre InoxModel ASME BPE -TKC Connections

SHARE

Tri-Clamp Connections: according to ASME BPE Welding Flange Material: AISI 316L – 1.4404  | on request 1.4435 or other special steels | Locking Ring Material: AISI 316L – 1.4404 Bolts and Nuts Material: AISI 304 – 1.4301 Internal Surface Finish: Ra ≤ 0.5µm code 12 e.g.: TKC-AG015-12A Optional: For costumized TKC-A Connections, please contact us.

Most popular related searches
  • Regulatory: designed according to PED 2014/68/EU directive, ASME VIII Div.2 and F.E.M. (Finite Element Method) calculated, approved and certified by notified body. (except sizes 8” - 10”)
  • Design Pressure:  7 barg (101,5 psig)  (except sizes 8” - 10”)
  • Design Temperature: -80°C to 200°C (-112°F to 392°F) Note : The applied gasket (not included) may have different design temperature and/or pressure limits than the TKC. The weakest component in the assembled product determines the maximum design temperature and pressure limits.
  • Marking: Each TKC Connection is marked with Heat No. for full lot traceability.
