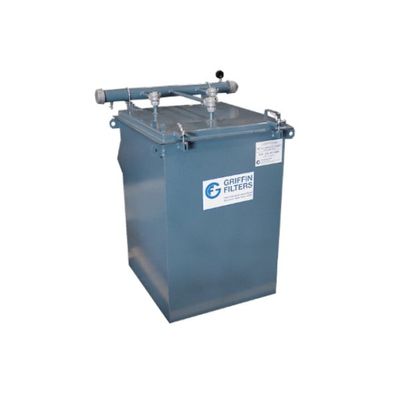

Griffin - Top Load Cartridge Collectors
Griffin’s Top Load Cartridge Collectors bring efficiency and economy to dust collection. Designed for easy installation, operation and maintenance, Griffin’s TLC series is a flexible answer to a variety dust collection and product recovery concerns. These pulse jet filter vents provide continuous fabric filtration for extended periods. And without internal moving parts, maintenance is kept to a minimum. Like all of our dust collection systems, these units are built to be exceptionally rugged and ready to stand up to heavy-duty use. With a wide range of options, they`ll bring you the flexibility to meet your application needs.
Design Features
- Housing: Continuously welded Hot Rolled Steel (HRS)
- Filter Area: 234ft² – 555ft²
- Pressure: standard design for +/-20”W.G.
- Standard Cartridges: 12-3/4” diameter x 30” tall
Efficient Performance
Less Downtime
Pulse technology allows continuous filtration over extended periods.
Balanced Design
The header pipe acts as a counter-weight to assist opening access hatch
Maintenance
Minimal Maintenance
Without internal moving parts, maintenance is kept to a minimum.
Maintenance Friendly Design
Units designed for faster and easier cartridge replacement: simply remove the swing-bolts, open the roof, loosen the hold-downs, and replace the cartridges.
- Four standard models available, all with a hinged top access door for cartridge removal
- 12-3/4" Dia. x 30" Cartridges with 80/20 cellulose polyester or spun bond polyester media (other sizes and media also available)
- Standard units designed for -20" W.G.
- Housing constructed of continuously welded HRS
- Control panel in NEMA 12 4 enclosure standard for all TLC models-shipped loose for field mounting
- Magnehelic gauge with mounting bracket shipped loose
- Fans – available as required, suitable for grade level or side mounting on collector
- Barrel hopper assembly – standard 60 degree slope with flanged discharge and support legs
- Other accessories – elevated walkway, railing, ladder, slide gate, rotary air lock, insulation, companion flange, bird screening, roof adapter
