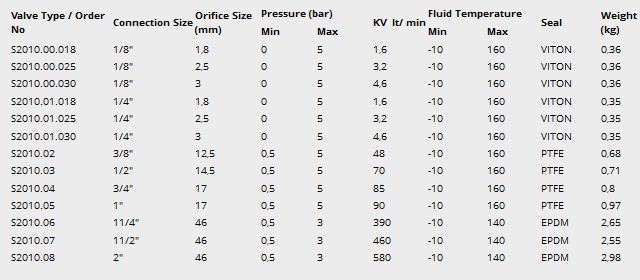

TORK-B - Model S2010 -Normally Closed Steam Solenoid Valves

Application : Steam, hot water. Size :  1/2`…….2` BSP (on request NPT). Pressure :  0,5 bar…5 bar (1/8`, 1/4`: 0 … 5 bar). Tube and internal part : Stainless Steel. Body :  Brass. Seal : 1/8,1/4` Viton  ; 3/8`...1` PTFE , 1 1/4`...2` EPDM. Temperature :  .-10°C…160 °C ( 1 1/4` … 2`, 140°C). Position :  Normally Closed. Coil Voltage :  230V, 110V , 48V, 24V , 12V  AC ; 110V , 48V , 24V , 12 V DC. Protection Class : IP65 and Exproof models.
