TORK - Model REA 40 -On/Off Electric Actuators
FromSMS-TORK
Specially designed for quarter turn operating applications such as Ball, Butterfly, Plug valves, Dampers and similar usages. Its variation in wide range of output of torque control options fit your specific requirement. High grade aluminium alloy for housing provides compact and low weight
High corrosion resistance due to hard anodizing on inside & outside and polyester coating on external surface. Easy mounting base standard to ISO 5211 (F03/F05/F07) Handwheel for manual operation. Standard 4 limit switches Long Life- Cycle.
Most popular related searches

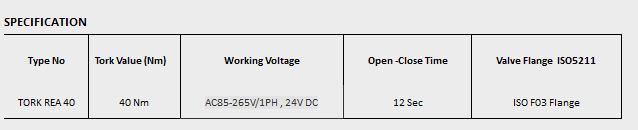

- Materials : Steel, aluminium alloy, al-bronze, polycarbonate.
- Torques Output : 40 Nm
- Enclosure : Weatherproof enclosure IP67, NEMA 4 and 6
- Travel Angle : 90° ± 10° (0° … 110°)
- Manuel Override : Declutching mechanism (8 cycles open and close)
- Power Supply : Multivoltage 220V AC 1PH , 110V AC / 24V DC, (0,4A … 0,19A)
- Motor : Industion motor (reversible)
- Limit Switches : Open / close, SPDT, 250 V AC, 16A rating
- Ambient Temp. : .-20°C … 70°C
- Cable Connection : Three PF3/4" taps
- Flange Connection : ISO5211 standard (F03/F05/F07)
- Open and Close Time : 12 - 14 seconds
